HXP CTF 2021 – RE hxp3drm Writeup
Challenge Description
Difficulty estimate: medium - medium
Points: round(1000 · min(1, 10 / (9 + [5 solves]))) = 714 points

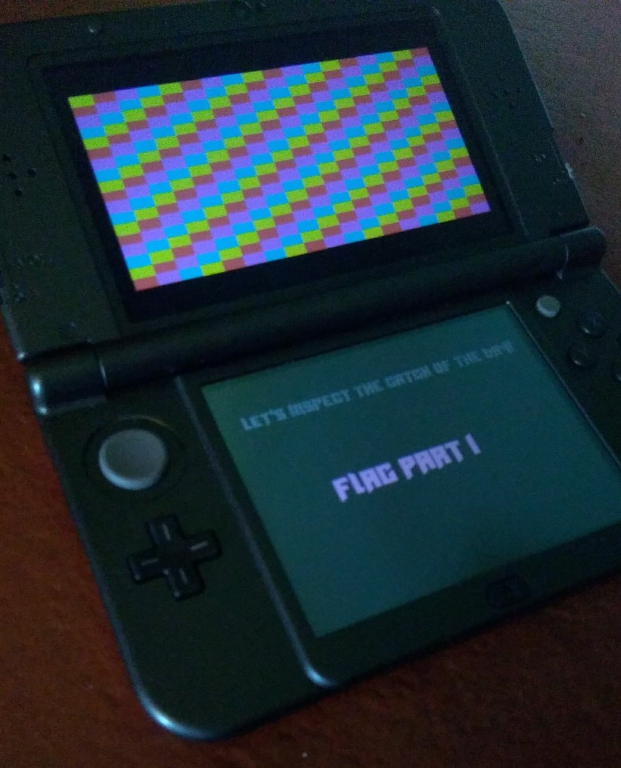

I was invited to a private beta by hxp’s (not so) secret game development lab. After a lot of suffering I managed to beat the game, but my olden eyes just cannot pick up the flag. Can you?
Note: Convert all flag characters to lower case before submitting your flag.
Download:
hxp3drm-97e6665a131c8727.tar.xz (154.4 KiB)
Solution
Here, we have to deal with Nintendo 3DS challenge. The first task is to run the program in the emulator. We use citra:
flatpak run org.citra_emu.citra
Bypassing emulator checks

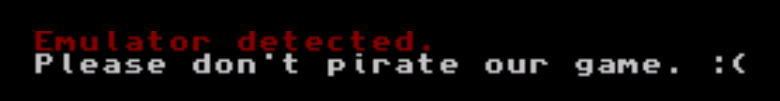

Shortly after we run the program, we get an error that the emulator was detected:
To find where this check comes from, we look at the XREFs to the Emulator detected. string:
RODATA:00146314 aEmulatorDetect DCB "Emulator detected.",0xA
RODATA:00146314 DCB "Please don't pirate our game. :(",0
However, there are no XREFs to it. To fix this, we search for LDR instructions that contain an
offset that corresponds (or it is very close) to aEmulatorDetect:
CODE:0010BA08 MOV R9, #0
CODE:0010BA0C LDR R4, =0x146313 ; <---- THIS
CODE:0010BA10 LDR R7, =0x5F5E100
CODE:0010BA14 ADD R5, R4, #1
CODE:0010BA18 ADD R6, R4, #0x12
CODE:0010BA1C
....
CODE:0010BA60 BL sub_1398A0
CODE:0010BA64 MOV R9, #0
CODE:0010BA68 LDR R4, =0x146325 ; <---- AND THIS
CODE:0010BA6C LDR R6, =0x5F5E100
....
CODE:0010BAC0 dword_10BAC0 DCD 0x146313
CODE:0010BAD0 dword_10BAD0 DCD 0x146325
Addresses 146313h and 146325h are the ones we are looking for, so we tell IDA to treat them as
XREFs. After that, the code is fixed:
RODATA:00146314 aEmulatorDetect DCB "Emulator detected.",0xA
RODATA:00146314 ; DATA XREF: u_detect_emulator:loc_10BA1C↑r
RODATA:00146314 DCB "Please don't pirate our game. :(",0
RODATA:00146348 glo_WHITE DCB 0x1B,"[39m",0 ; DATA XREF: u_detect_emulator+1F8↑o
CODE:0010BA0C LDR R4, =0x146313
CODE:0010BA10 LDR R7, =0x5F5E100
CODE:0010BA14 ADD R5, R4, #1
CODE:0010BA18 ADD R6, R4, #0x12
CODE:0010BA1C
CODE:0010BA1C loc_10BA1C ; CODE XREF: sub_10B848+1F4↓j
CODE:0010BA1C LDRB R0, [R4,#1]! ; "Emulator detected.\nPlease don't pirate"...
CODE:0010BA20 BL sub_123B40
....
CODE:0010BA64 MOV R9, #0
CODE:0010BA68 LDR R4, =(aEmulatorDetect+0x11) ; ".\nPlease don't pirate our game. :("
CODE:0010BA6C LDR R6, =0x5F5E100
CODE:0010BA70 ADD R5, R5, #0x33 ; '3'
CODE:0010BA74
CODE:0010BA74 loc_10BA74 ; CODE XREF: sub_10B848+24C↓j
CODE:0010BA74 LDRB R0, [R4,#1]! ; "\nPlease don't pirate our game. :("
CODE:0010BA78 BL sub_123B40
....
CODE:0010BAC0 off_10BAC0 DCD 0x146313 ; DATA XREF: sub_10B848+1C4↑r
....
CODE:0010BAD0 off_10BAD0 DCD aEmulatorDetect+0x11 ; DATA XREF: sub_10B848+220↑r
CODE:0010BAD0 ; ".\nPlease don't pirate our game. :("
NOTE: We follow the same approach for the other strings that have no XREFs to, to quickly locate the interesting parts of the program.
Following the XREFs to, we see that function u_detect_emulator at 0010B848h, is where emulator
checks are made:
void u_detect_emulator() { // XREF from sub_122B50
/* var decls */
/* ... random code ...*/
svc_SendSyncRequest();
if ( v3 >= 0 ) {
u_memset(hash, 0, 0x68u);
hash[2] = 0x67452301;
hash[5] = 0x10325476;
hash[3] = 0xEFCDAB89;
hash[4] = 0x98BADCFE;
u_md5_hash(hash, input, 8u);
u_md5_last_chunk(hash);
// if MD5 hash starts with
// hashlib.md5(b'\0'*8).hexdigest() gives target hash
if ( hash[22] == 0x2B36EA7D ) { // MD5: 7dea362b3fac8e00956a4952a3d4f474
sub_116164();
sub_11554C(1, v22);
sub_114898(v22);
u_change_font_color(glo_RED);
emulator_detected_str = 0x146313;
// print emulator detected string character by character
do {
v11 = *++emulator_detected_str;
sub_123B40(v11);
v19 = 0;
v20 = 0;
v21 = 100000000;
sub_1398A0(&v19, 0);
} while ( emulator_detected_str != 0x146325 );// 0x146325 end of "Emulator detected.\n" string
u_change_font_color(glo_WHITE);
v18[0] = 0;
v18[1] = 0;
v18[2] = 1000000000;
sub_1398A0(v18, 0);
v12 = &aEmulatorDetect[17];
do {
v13 = *++v12;
sub_123B40(v13);
v19 = 0;
v20 = 0;
v21 = 100000000;
sub_1398A0(&v19, 0);
} while ( v12 != &aEmulatorDetect[0x33] );// 0x146347 end of "Please don't pirate our game. :(" string
while ( 1 ) // spin loop!
;
}
/* ... */
}
All we have to do, is to patch the check condition. We open in binary in a hex editor and we search
for 7D EA 38 2B and we change this value to any other value that we want. We save the program and

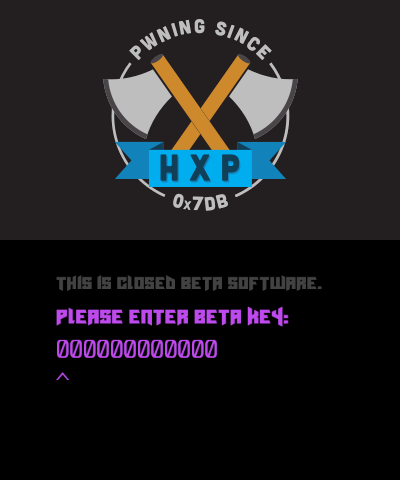

reload in the emulator. It now shows the beta key screen:
Beta Key Algorithm
Function u_beta_key_screen at 0010C1ACh is where it program loops until we enter the correct
beta key:
void __cdecl u_beta_key_screen() {
/* decls */
/* initialization code */
while ( sub_11B55C() ) { // loop forever
v8 = sub_11BB38();
v9 = (sub_11BDDC)(v8);
v10 = v9;
if ( beta_key_hash == 0xA11466A75557A46Fui64 )
break;
if ( (v9 & 0x40000040) != 0 ) { // CHANGE LETTER VALUE UP
v22 = 32 - 5 * idx_loc;
v23 = 5 * idx_loc - 32;
v24 = ((((glo_beta_key_val >> (5 * idx_loc)) | (BYTE4(glo_beta_key_val) << v22)) | (HIDWORD(glo_beta_key_val) >> v23))
+ 1) & 0x1F;
LODWORD(glo_beta_key_val) = glo_beta_key_val & ~(31 << (5 * idx_loc)) | (v24 << (5 * idx_loc));
HIDWORD(glo_beta_key_val) = (v24 << v23) | (v24 >> v22) | HIDWORD(glo_beta_key_val) & ~((31 << v23) | (0x1Fu >> v22));
u_crypt_beta_key_val(&beta_key_hash, &glo_beta_key_val, &aPleaseEnterBet[0xD]);
}
if ( (v10 & 0x80000080) != 0 ) { // CHANGE LETTER VALUE DOWN
v19 = 32 - 5 * idx_loc;
v20 = 5 * idx_loc - 32;
v21 = ((((glo_beta_key_val >> (5 * idx_loc)) | (BYTE4(glo_beta_key_val) << v19)) | (HIDWORD(glo_beta_key_val) >> v20))
- 1) & 0x1F;
LODWORD(glo_beta_key_val) = glo_beta_key_val & ~(31 << (5 * idx_loc)) | (v21 << (5 * idx_loc));
HIDWORD(glo_beta_key_val) = (v21 << v20) | (v21 >> v19) | HIDWORD(glo_beta_key_val) & ~((31 << v20) | (0x1Fu >> v19));
u_crypt_beta_key_val(&beta_key_hash, &glo_beta_key_val, &aPleaseEnterBet[0xD]);
}
if ( (v10 & 0x20000020) != 0 ) // MOVE LEFT
idx_loc = (idx_loc + 11) % 0xC;
if ( (v10 & 0x10000010) != 0 ) // MOVE RIGHT
idx_loc = (idx_loc + 13) % 0xC;
v11 = (sub_1101CC)(1); // do the actual print
(sub_1096AC)(v11);
sub_109918(v4, 0xFF000000);
sub_10977C();
sub_1102B0(v4);
sub_1097B8(*(v4 + 16), *(v4 + 18), *(v4 + 27));
sub_10DEC8(dword_197FE8);
u_local_copy_maybe(&v31, aThisIsClosedBe, iter / 5);// print 1 character from str
v32[iter / 5 - 3] = 0;
sub_10E098(glo_A, dword_197FEC, dword_197FE8);
sub_10E140(glo_A);
u_unknown_A(glo_A, 2, 0x41800000, 0x42000000, 0x3F000000, 0.66, 0x3F28F5C3, 0xFF424242);
if ( iter <= 0x190 ) {
if ( ++iter <= 0x12C )
goto SKIP;
sub_10E098(glo_A, dword_197FEC, dword_197FE8);
sub_10E140(glo_A);
u_unknown_A(glo_A, 2, 0x41800000, 0x42800000, 0x3F000000, 0.75, 0x3F400000, 0xFFED4ABE);
if ( iter != 0x191 )
goto SKIP;
} else {
sub_10E098(glo_A, dword_197FEC, dword_197FE8);
sub_10E140(glo_A);
u_unknown_A(glo_A, 2, 0x41800000, 0x42800000, 0x3F000000, 0.75, 0x3F400000, 0xFFED4ABE);
}
shl = 0;
beta_key = glo_beta_key_val;
ptr = v26;
// 0xA11466A75557A46F
// ''.join('0123456789ABCDEFGHJKLMNPRTUVWXYZ'[(0xA11466A75557A46F >> a) & 0x1F] for a in range(0, 60, 5))
// Beta Key: F39FMAXL6352
do { // print beta key
ch = a0123456789abcd[(beta_key >> shl) & 0x1F];// character set
shl += 5;
*ptr++ = ch;
} while ( shl != 60 );
sub_10E098(glo_A, dword_197FF0, dword_197FE8);
sub_10E140(glo_A);
u_unknown_A(glo_A, 2, 0x41800000, 0x42C00000, 0x3F000000, 0.75, 0x3F400000, 0xFFED4ABE);
u_memset(result, 0x20u, idx_loc);
result[idx_loc] = '^'; // the mark underneath the key
u_memset(&result[idx_loc + 1], 0x20u, 11 - idx_loc);
sub_10E098(glo_A, dword_197FF0, dword_197FE8);
sub_10E140(glo_A);
u_unknown_A(glo_A, 2, 0x41800000, 0x43000000, 0x3F000000, 0.75, 0x3F400000, 0xFFED4ABE);
SKIP:
sub_110350(0);
}
/* ... */
}
The up/down arrows used to change letters in beta key. Every time we change a letter, the beta key
is updated and converted to a 64-bit value (let us call it beta_key_int as follows:
v22 = 32 - 5 * idx_loc;
v23 = 5 * idx_loc - 32;
v24 = ((((glo_beta_key_val >> (5 * idx_loc)) | (BYTE4(glo_beta_key_val) << v22)) | (HIDWORD(glo_beta_key_val) >> v23))
+ 1) & 0x1F;
LODWORD(glo_beta_key_val) = glo_beta_key_val & ~(31 << (5 * idx_loc)) | (v24 << (5 * idx_loc));
HIDWORD(glo_beta_key_val) = (v24 << v23) | (v24 >> v22) | HIDWORD(glo_beta_key_val) & ~((31 << v23) | (0x1Fu >> v22));
Or simpler:
def beta_key_to_int(key):
n = 0
for i in key[::-1]:
n = (n << 5) | '0123456789ABCDEFGHJKLMNPRTUVWXYZ'.index(i)
return n
Once the glo_beta_key_val is computed, main encryption takes place:
u_crypt_beta_key_val(&beta_key_hash, &glo_beta_key_val, &aPleaseEnterBet[0xD]);
To move on to the next screen, the encrypted beta key that is stored in beta_key_hash must be A11466A75557A46Fh:
if ( beta_key_hash == 0xA11466A75557A46Fui64 )
break;
Function u_crypt_beta_key_val at 0010BAD4h implements the main encryption algorithm of the program.
First, it uses a fake flag hxp{certainlynotaflag} to generate a random map rnd_map of 88
bytes and then uses the first 8 bytes to XOR them with beta_key_int and with the constant 11h:
void __fastcall u_calc_beta_key_val(unsigned __int64 *a1_out, unsigned __int64 *a2_betakey, const char *a3_str) {
/* var decls */
u_local_copy_maybe(sbox, glo_s_box, 0x100u);
strcpy(fakeflag, "hxp{certainlynotaflag}");
u_memset(rnd_map, 0, 88u);
fakeflag_ = fakeflag;
v8 = &v75;
while ( 1 ) { // 11 * 8 iterations
j = a3_str - 1;
buf = v8;
do {
b = *++j;
*++buf = (((b ^ a) + (i >> 3)) >> (8 - (i & 7))) | (((b ^ a) + (i >> 3)) << (i & 7));
} while ( j != a3_str + 7 ); // "Beta Key" / "get flag" (8 chars)
++i;
v8 += 8;
if ( i == 11 )
break;
nxt_flag_ch = *++fakeflag_;
a = nxt_flag_ch;
}
u_local_copy_maybe(v73, glo_str, 0x58u);
v13 = *(a2_betakey + 1);
p_beta_key = &beta_key;
LODWORD(beta_key) = *a2_betakey;
HIDWORD(beta_key) = v13;
v15 = rnd_map;
do {
v16 = *v15++;
*p_beta_key++ ^= v16;
} while ( fakeflag != p_beta_key );
rnd_map_2nd_half = &rnd_map[7];
beta_key ^= 0x1111111111111111ui64;
The simplified version in python is shown below:
# Generate random map.
# For `rnd_seed` = 'Beta Key' the expected value for `rnd_map is:
#
# 2A 0D 1C 09 48 23 0D 11 74 3A 18 32 B0 66 3A 02
# C8 54 10 44 41 EC 54 24 C9 F0 78 D0 DA 81 F0 10
# 12 60 71 20 34 82 60 A1 E4 00 22 80 A8 C5 00 83
# 0C C5 81 C4 94 4E C5 C2 1B 88 00 8A 2A 9F 88 86
# 24 05 16 01 42 2B 05 19 58 1A 3C 12 94 46 1A 22
# B4 30 6C 40 3D 98 30 60
rnd_map = []
for i, a in enumerate('hxp{certainlynotaflag}'[:11]):
for b in rnd_seed[:8]:
rnd_map.append(((((ord(b) ^ ord(a)) + (i >> 3)) >> (8 - (i & 7))) |
(((ord(b) ^ ord(a)) + (i >> 3)) << (i & 7))) & 0xFF)
beta_key = beta_key_int.to_bytes(8, 'little')
beta_key = [b ^ r ^ 0x11 for b, r in zip(beta_key, rnd_map)]
Then what follows, are 11 rounds of some weird computations:
do {
nb = &beta_key;
do {
*nb = sbox[*nb];
++nb;
} while ( fakeflag != nb );
// ----------------------------------------------------
// 1 round of GF(LO(beta_key), LO(beta_key)) = A
a2 = 0;
if ( (beta_key & 0x8000) != 0 )
a2 = -1;
a1 = beta_key & 0x80;
if ( (beta_key & 0x80) != 0 )
a1 = -1;
b2 = 0;
if ( (beta_key & 0x800000000000i64) != 0 )
b2 = -1;
b1 = BYTE4(beta_key) & 0x80;
if ( (beta_key & 0x8000000000i64) != 0 )
b1 = -1;
a3 = 0;
if ( (beta_key & 0x800000) != 0 )
a3 = -1;
b3 = 0;
if ( (beta_key & 0x80000000000000i64) != 0 )
b3 = -1;
round1 = (a1 | (a2 << 8) | (a3 << 16) | ((beta_key >> 31) << 24)) & 0x1D1D1D1D ^ ((2 * beta_key) & 0xFE000000 | (2 * beta_key) & 0xFE0000 | (2 * beta_key) & 0xFE00 | (2 * beta_key) & 0xFE);// & higher precedense than ^
// ----------------------------------------------------
// 1 round of GF(HI(beta_key), HI(beta_key)) = B
v25 = (b1 | (b2 << 8) | (b3 << 16) | (SHIDWORD(beta_key) >> 31 << 24)) & 0x1D1DFFFF;
c1 = round1 & 0x80;
if ( (round1 & 0x80) != 0 )
c1 = -1;
c2 = 0;
if ( (round1 & 0x8000) != 0 )
c2 = -1;
v28 = v25 & 0x1FFF1DFF; // v28 = v25 & 0x1D1D1DFF
c3 = 0;
if ( (round1 & 0x800000) != 0 )
c3 = -1;
round2 = v28 & 0xFFFFFF1D ^ ((2 * HIDWORD(beta_key)) & 0xFE000000 | (2 * HIDWORD(beta_key)) & 0xFE0000 | (2 * WORD2(beta_key)) & 0xFE00 | (2 * BYTE4(beta_key)));
// ----------------------------------------------------
// 1 round of GF(A, A) = C
d1 = round2 & 0x80;
if ( (round2 & 0x80) != 0 )
d1 = -1;
d2 = 0;
if ( (round2 & 0x8000) != 0 )
d2 = -1;
d3 = 0;
if ( (round2 & 0x800000) != 0 )
d3 = -1;
round3 = (c1 | (c2 << 8) | (c3 << 16) | ((round1 >> 31) << 24)) & 0x1D1D1D1D ^ ((2 * round1) & 0xFE000000 | (2 * round1) & 0xFE0000 | (2 * round1) & 0xFE00 | (2 * round1));
p_xor13 = round1 ^ round3;
// ----------------------------------------------------
// 1 round of GF(B, B) = D
round4 = (d1 | (d2 << 8) | (d3 << 16) | (round2 >> 31 << 24)) & 0x1D1D1D1D ^ ((2 * round2) & 0xFE000000 | (2 * round2) & 0xFE0000 | (2 * round2) & 0xFE00 | (2 * round2));
// ----------------------------------------------------
// 1 round of GF(C, C) = E
f1 = round4 & 0x80;
if ( (round4 & 0x80) != 0 )
f1 = -1;
f2 = 0;
if ( (round4 & 0x8000) != 0 )
f2 = -1;
e1 = round3 & 0x80;
if ( (round3 & 0x80) != 0 )
e1 = -1;
e2 = 0;
if ( (round3 & 0x8000) != 0 )
e2 = -1;
f3 = 0;
if ( (round4 & 0x800000) != 0 )
f3 = -1;
e3 = 0;
if ( (round3 & 0x800000) != 0 )
e3 = -1;
round3_ = round3;
e12 = e1 | (e2 << 8);
f123 = f1 | (f2 << 8) | (f3 << 16);
pxor_hi_2 = round2 ^ HIDWORD(beta_key);
round3_byte1 = BYTE1(round3);
pxor_lo_3 = beta_key ^ round3;
pxor_lo_1 = round1 ^ beta_key;
pxor_lo_1_3 = pxor_lo_1 ^ round3;
round3_12 = BYTE2(round3) | (HIBYTE(round3) << 8);
round5 = (e12 | (e3 << 16) | (round3 >> 31 << 24)) & 0x1D1D1D1D ^ ((BYTE2(round3) << 17) & 0xFE0000 | (BYTE1(round3) << 9) | (2 * round3) | (HIBYTE(round3) << 25));
// ----------------------------------------------------
// 1 round of GF(D, D) = F
round3_all = round3_12 | (round3_ << 16) | (round3_byte1 << 24);
round6 = ((BYTE2(round4) << 17) & 0xFE0000 | (BYTE1(round4) << 9) | (2 * round4) | (HIBYTE(round4) << 25)) ^ (f123 | (round4 >> 31 << 24)) & 0x1D1D1D1D;
// ----------------------------------------------------
pxor_b1b = (BYTE1(pxor_lo_1) | (pxor_lo_1 << 8) | (HIBYTE(pxor_lo_1) << 16) | (HIWORD(pxor_lo_1) << 24)) ^ beta_key;// change byte order as well
pxor_b15 = pxor_lo_1 ^ round5;
pxor_b24 = (BYTE2(round4) | (HIBYTE(round4) << 8) | (round4 << 16) | (BYTE1(round4) << 24)) ^ (((round2 ^ WORD2(beta_key)) >> 8) | ((round2 ^ BYTE4(beta_key)) << 8) | ((round2 ^ HIDWORD(beta_key)) >> 24 << 16) | ((round2 ^ HIDWORD(beta_key)) >> 16 << 24)) ^ HIDWORD(beta_key);
rnd_map_2nd_half_ = rnd_map_2nd_half;
pxor_b4 = HIDWORD(beta_key) ^ round4;
v54 = ((pxor_lo_3 << 8) & 0xFF0000 | (pxor_lo_3 >> 8) & 0xFF00 | HIBYTE(pxor_lo_3) | (pxor_lo_3 << 24)) ^ pxor_b1b ^ round3_all ^ round2 ^ round4;
v55 = ((HIDWORD(beta_key) ^ round4) << 8) & 0xFF0000 | ((HIDWORD(beta_key) ^ round4) >> 8) & 0xFF00 | ((HIDWORD(beta_key) ^ round4) >> 24);
v56 = round4 ^ pxor_hi_2;
LO = (((pxor_hi_2 ^ round6) << 16) | ((pxor_hi_2 ^ round6) >> 16) | ((pxor_hi_2 ^ round6) >> 8 << 24)) ^ v54 ^ ((v56 << 8) & 0xFF0000 | (v56 >> 8) & 0xFF00 | HIBYTE(v56) | (v56 << 24)) ^ (BYTE1(round6) | (round6 << 8) | (HIBYTE(round6) << 16) | (HIWORD(round6) << 24));
HI = ((pxor_b15 << 16) | HIWORD(pxor_b15) | (pxor_b15 >> 8 << 24)) ^ ((pxor_lo_1_3 << 8) & 0xFF0000 | (pxor_lo_1_3 >> 8) & 0xFF00 | HIBYTE(pxor_lo_1_3) | (pxor_lo_1_3 << 24)) ^ pxor_b24 ^ (v55 | (pxor_b4 << 24)) ^ p_xor13 ^ (BYTE1(round5) | (round5 << 8) | (HIBYTE(round5) << 16) | (HIWORD(round5) << 24));
nb_ = &beta_key;
beta_key = __PAIR64__(HI, LO);
do {
rnd = *++rnd_map_2nd_half_;
*nb_++ ^= rnd;
} while ( fakeflag != nb_ );
beta_key ^= *v64; // XOR with 22222, 33333, .... BBBBB
v61 = rnd_map == (v64 + 8);
v64 += 8;
rnd_map_2nd_half += 8;
} while ( !v61 );
To understand what is going on here, let us focus on the first part:
a2 = 0;
if ( (beta_key & 0x8000) != 0 )
a2 = -1;
a1 = beta_key & 0x80;
if ( (beta_key & 0x80) != 0 )
a1 = -1;
b2 = 0;
if ( (beta_key & 0x800000000000i64) != 0 )
b2 = -1;
b1 = BYTE4(beta_key) & 0x80;
if ( (beta_key & 0x8000000000i64) != 0 )
b1 = -1;
a3 = 0;
if ( (beta_key & 0x800000) != 0 )
a3 = -1;
b3 = 0;
if ( (beta_key & 0x80000000000000i64) != 0 )
b3 = -1;
round1 = (a1 | (a2 << 8) | (a3 << 16) | ((beta_key >> 31) << 24)) & 0x1D1D1D1D ^ ((2 * beta_key) & 0xFE000000 | (2 * beta_key) & 0xFE0000 | (2 * beta_key) & 0xFE00 | (2 * beta_key) & 0xFE);// & higher precedense than ^
Let a1, a2, a3 and a4 be masks for the 4 LSBytes of beta_key_int and b1, b2, b3 and b4
be masks for the 4 MSBytes respectively. The very first part is:
a1 = beta_key & 0x80;
if ( (beta_key & 0x80) != 0 )
a1 = -1;
If the MSBit of the LSByte of beta_key is 0 then a1 = 0. Otherwise, a1 = 0xFF. The same
applies for the other as and bs. Then we have the round1 assignment:
round1 = (a1 | (a2 << 8) | (a3 << 16) | ((beta_key >> 31) << 24)) & 0x1D1D1D1D ^
((2 * beta_key) & 0xFE000000 | (2 * beta_key) & 0xFE0000 | (2 * beta_key) & 0xFE00 | (2 * beta_key) & 0xFE)
Let us start with the first part: (a1 | (a2 << 8) | (a3 << 16) | ((beta_key >> 31) << 24)) & 0x1D1D1D1D.
Depending on the value of a1, the LSByte can be either 0 or 1Dh. The same applies for a2, a3 and a4.
Then, the result in the MSByte is XORed with (2 * beta_key) & 0xFE). Overall the computation for
the LSByte of round1 is:
if ((beta_key & 0x80) != 0) {
beta_key = beta_key*2 ^ 0x1D
} else {
beta_key = beta_key*2
}
This pattern is actually a Galois Fields multiplication
between beta_key and 2 in GF(2^8) using modulo polynomial x^8 + x^4 + x^3 + x^2 + 1
(or 0x1D, or 1 0001 1011). However, the above operation applies the above computation in parallel
for all 4 LSBytes of beta_key_int.
This pattern continues, with the result being feed into new Galois Field multiplications again and again. If we write down all equations, the encryption round looks like this:
def xor(aa, bb): return [a ^ b for a, b in zip(aa, bb)]
def galois_1_round(lo):
n = []
for l in lo:
if l & 0x80: l = (l << 1) ^ 0x11D
else: l = l << 1
n.append(l & 0xFF)
return n
lo, hi = beta_key[:4], beta_key[4:]
A = galois_1_round(lo)
B = galois_1_round(hi)
C = galois_1_round(A)
D = galois_1_round(B)
E = galois_1_round(C)
F = galois_1_round(D)
qxor_lo_1_lo = [
lo[1]^A[1] ^ lo[0],
lo[0]^A[0] ^ lo[1],
lo[3]^A[3] ^ lo[2],
lo[2]^A[2] ^ lo[3],
]
qxor_b24 = [
D[2] ^ B[1] ^ hi[1] ^ hi[0],
D[3] ^ B[0] ^ hi[0] ^ hi[1],
D[0] ^ B[3] ^ hi[3] ^ hi[2],
D[1] ^ B[2] ^ hi[2] ^ hi[3],
]
v54 = [
lo[3] ^ C[3] ^ qxor_lo_1_lo[0] ^ B[0] ^ C[2] ^ D[0],
lo[2] ^ C[2] ^ qxor_lo_1_lo[1] ^ B[1] ^ C[3] ^ D[1],
lo[1] ^ C[1] ^ qxor_lo_1_lo[2] ^ B[2] ^ C[0] ^ D[2],
lo[0] ^ C[0] ^ qxor_lo_1_lo[3] ^ B[3] ^ C[1] ^ D[3]
]
v55 = [
hi[3] ^ D[3],
hi[2] ^ D[2],
hi[1] ^ D[1],
hi[0] ^ D[0]
]
pxor_hi_2_4 = xor(xor(hi, B), D)
LO = [
hi[2]^B[2]^F[2] ^ v54[0] ^ pxor_hi_2_4[3] ^ F[1],
hi[3]^B[3]^F[3] ^ v54[1] ^ pxor_hi_2_4[2] ^ F[0],
hi[0]^B[0]^F[0] ^ v54[2] ^ pxor_hi_2_4[1] ^ F[3],
hi[1]^B[1]^F[1] ^ v54[3] ^ pxor_hi_2_4[0] ^ F[2],
]
HI = [
lo[2]^A[2]^E[2] ^ lo[3]^A[3]^C[3] ^ qxor_b24[0] ^ v55[0] ^ A[0]^C[0] ^ E[1],
lo[3]^A[3]^E[3] ^ lo[2]^A[2]^C[2] ^ qxor_b24[1] ^ v55[1] ^ A[1]^C[1] ^ E[0],
lo[0]^A[0]^E[0] ^ lo[1]^A[1]^C[1] ^ qxor_b24[2] ^ v55[2] ^ A[2]^C[2] ^ E[3],
lo[1]^A[1]^E[1] ^ lo[0]^A[0]^C[0] ^ qxor_b24[3] ^ v55[3] ^ A[3]^C[3] ^ E[2],
]
beta_key = LO + HI # These are lists!
beta_key = [b ^ r for b, r in zip(beta_key, rnd_map[8:])]
beta_key = [b ^ 0x11*i for b in beta_key]
rnd_map = rnd_map[8:]
Let us simplify and re-order the equations:
# Galois Fields helper routines (K rounds of multiplication).
galois_1_round = lambda lo: \
[((a << 1) ^ 0x1D if a & 0x80 else a << 1) & 0xFF for a in lo]
galois_2_rounds = lambda lo: \
galois_1_round(galois_1_round(lo))
galois_3_rounds = lambda lo: \
galois_1_round(galois_1_round(galois_1_round(lo)))
A = galois_1_round(lo) # lo*2
B = galois_1_round(hi) # hi*2
C = galois_2_rounds(lo) # lo*4, or C = galois_1_round(A)
D = galois_2_rounds(hi) # hi*4, or D = galois_1_round(B)
E = galois_3_rounds(lo) # lo*8, or E = galois_1_round(C)
F = galois_3_rounds(hi) # hi*8, or F = galois_1_round(D)
lo_nxt = [
lo[0]^lo[1]^lo[3] ^ A[1] ^ B[0]^B[2]^B[3] ^ C[2]^C[3] ^ D[0]^D[3] ^ F[1]^F[2] ^ hi[2]^hi[3],
lo[0]^lo[1]^lo[2] ^ A[0] ^ B[1]^B[2]^B[3] ^ C[2]^C[3] ^ D[1]^D[2] ^ F[0]^F[3] ^ hi[2]^hi[3],
lo[1]^lo[2]^lo[3] ^ A[3] ^ B[0]^B[1]^B[2] ^ C[0]^C[1] ^ D[1]^D[2] ^ F[0]^F[3] ^ hi[0]^hi[1],
lo[0]^lo[2]^lo[3] ^ A[2] ^ B[0]^B[1]^B[3] ^ C[0]^C[1] ^ D[0]^D[3] ^ F[1]^F[2] ^ hi[0]^hi[1],
]
# Exactly the same as lo_nxt with substitutions:
# lo ~> hi, hi ~> lo, A ~> B, B ~> A, C ~> D, D ~> C, E ~> F, F ~> E
hi_nxt = [
lo[2]^lo[3] ^ A[0]^A[2]^A[3] ^ B[1] ^ C[0]^C[3] ^ D[2]^D[3] ^ E[1]^E[2] ^ hi[0]^hi[1]^hi[3],
lo[2]^lo[3] ^ A[1]^A[2]^A[3] ^ B[0] ^ C[1]^C[2] ^ D[2]^D[3] ^ E[0]^E[3] ^ hi[0]^hi[1]^hi[2],
lo[0]^lo[1] ^ A[0]^A[1]^A[2] ^ B[3] ^ C[1]^C[2] ^ D[0]^D[1] ^ E[0]^E[3] ^ hi[1]^hi[2]^hi[3],
lo[0]^lo[1] ^ A[0]^A[1]^A[3] ^ B[2] ^ C[0]^C[3] ^ D[0]^D[1] ^ E[1]^E[2] ^ hi[0]^hi[2]^hi[3],
]
Let us do it one more time:
def GFadd(a, b): return a ^ b
def GFmul(a, b):
p = 0
while a != 0 and b != 0:
if (b & 1):
p ^= a;
if a & 0x80:
a = (a << 1) ^ 0x11D
else:
a <<= 1
b >>= 1
return p
GFop = lambda lo, c1, c2, c3, c4: \
GFmul(lo[0], c1) ^ GFmul(lo[1], c2) ^ GFmul(lo[2], c3) ^ GFmul(lo[3], c4)
for i in range(2, 0xB+1): # Repeat for 10 rounds.
beta_key = [sbox[b] for b in beta_key]
lo, hi = beta_key[:4], beta_key[4:]
lo_nxt = [
GFop(lo, 0b001, 0b011, 0b100, 0b101) ^ GFop(hi, 0b0110, 0b1000, 0b1011, 0b0111),
GFop(lo, 0b011, 0b001, 0b101, 0b100) ^ GFop(hi, 0b1000, 0b0110, 0b0111, 0b1011),
GFop(lo, 0b100, 0b101, 0b001, 0b011) ^ GFop(hi, 0b1011, 0b0111, 0b0110, 0b1000),
GFop(lo, 0b101, 0b100, 0b011, 0b001) ^ GFop(hi, 0b0111, 0b1011, 0b1000, 0b0110),
]
hi_nxt = [
GFop(lo, 6, 8, 11, 7) ^ GFop(hi, 1, 3, 4, 5),
GFop(lo, 0b1000, 0b0110, 0b0111, 0b1011) ^ GFop(hi, 0b011, 0b001, 0b101, 0b100),
GFop(lo, 0b1011, 0b0111, 0b0110, 0b1000) ^ GFop(hi, 0b100, 0b101, 0b001, 0b011),
GFop(lo, 0b0111, 0b1011, 0b1000, 0b0110) ^ GFop(hi, 0b101, 0b100, 0b011, 0b001),
]
At this point it is clear what encryption does. It uses all 8 bytes of the beta_key_int, each
one multiplied by a different constant, to derive the value for the LSByte of the beta_key_int
for the next round. To derive the 2nd LSByte, algorithm uses a different set of constants, and so on.
The encryption for a random beta key (e.g., 1ZY00000010Z) looks like this (we verified the result
in the debugger):
[+] Encrypting beta key value: 0F80200000007BE1
[+] Random map: 2A-0D-1C-09-48-23-0D-11-74-3A-18-32-B0-66-3A-02-C8-54-10-44-41-EC-54-24-C9-F0-78-D0-DA-81-F0-10-12-60-71-20-34-82-60-A1-E4-00-22-80-A8-C5-00-83-0C-C5-81-C4-94-4E-C5-C2-1B-88-00-8A-2A-9F-88-86-24-05-16-01-42-2B-05-19-58-1A-3C-12-94-46-1A-22-B4-30-6C-40-3D-98-30-60
[+] Beta key as list: E1-7B-00-00-00-20-80-0F
[+] Beta key after XOR : DA-67-0D-18-59-12-9C-0F
[+] Beta key after SBOX: AB-1C-0C-ED-B7-6B-09-41
[+] Round 2: Beta Key: LO=AB-1C-0C-ED, HI=B7-6B-09-41 ~> LO=A2-2B-C1-87, HI=86-D7-60-3C
[+] Beta key after XOR : F4-33-FB-97-14-93-78-1C
[+] Beta key after SBOX: BB-CA-F4-DB-45-48-24-1D
[+] Round 3: Beta Key: LO=BB-CA-F4-DB, HI=45-48-24-1D ~> LO=64-DE-9F-AF, HI=0E-60-C6-48
[+] Beta key after XOR : 9F-B9-BC-D8-7C-BF-A1-5F
[+] Beta key after SBOX: 94-96-13-D4-60-2E-5C-D7
[+] Round 4: Beta Key: LO=94-96-13-D4, HI=60-2E-5C-D7 ~> LO=CD-C7-82-4D, HI=F3-B5-07-84
[+] Beta key after XOR : 40-73-BE-D9-6D-70-B3-D0
[+] Beta key after SBOX: 8B-B2-63-25-18-FE-26-78
[+] Round 5: Beta Key: LO=8B-B2-63-25, HI=18-FE-26-78 ~> LO=A1-37-41-3B, HI=9F-5C-18-F0
[+] Beta key after XOR : E6-02-65-4E-FE-8B-2D-04
[+] Beta key after SBOX: AC-2C-1B-84-80-95-C5-B3
[+] Round 6: Beta Key: LO=AC-2C-1B-84, HI=80-95-C5-B3 ~> LO=EB-ED-EC-0D, HI=A8-6D-E6-B8
[+] Beta key after XOR : 69-8B-A8-EB-66-CE-80-5D
[+] Beta key after SBOX: 0F-95-73-68-11-B4-AA-17
[+] Round 7: Beta Key: LO=0F-95-73-68, HI=11-B4-AA-17 ~> LO=B9-7C-FF-94, HI=D8-59-7C-CA
[+] Beta key after XOR : C2-CE-09-27-3B-60-CE-7F
[+] Beta key after SBOX: A7-B4-85-CE-D6-14-B4-50
[+] Round 8: Beta Key: LO=A7-B4-85-CE, HI=D6-14-B4-50 ~> LO=52-13-E2-07, HI=AF-73-F6-F0
[+] Beta key after XOR : C1-13-6A-05-0D-64-F6-FE
[+] Beta key after SBOX: 79-93-9C-27-0C-DE-43-80
[+] Round 9: Beta Key: LO=79-93-9C-27, HI=0C-DE-43-80 ~> LO=F6-F1-5E-88, HI=E7-BF-9F-56
[+] Beta key after XOR : 4B-6D-D1-10-3C-0D-03-D6
[+] Beta key after SBOX: 20-18-98-23-51-0C-EC-71
[+] Round 10: Beta Key: LO=20-18-98-23, HI=51-0C-EC-71 ~> LO=36-2E-9D-80, HI=92-9F-5D-16
[+] Beta key after XOR : C4-9E-0B-38-AC-73-ED-9E
[+] Beta key after SBOX: 9F-DD-35-D9-9D-B2-38-DD
[+] Round 11: Beta Key: LO=9F-DD-35-D9, HI=9D-B2-38-DD ~> LO=87-A0-A2-E3, HI=24-80-6D-CB
[+] Beta key after XOR : 88-2B-75-18-A2-A3-E6-10
[+] Final ciphertext: 88-2B-75-18-A2-A3-E6-10
[+] Galois_Fields_Encryption(1ZY00000010Z) = 88-2B-75-18-A2-A3-E6-10
Cracking Beta Key Algorithm
The goal here, is to find which value of beta key, produces a hash of A11466A75557A46Fh, or
6F-A4-57-55-A7-66-14-A1. If take a look at the encryption algorithm, we need to work backwards.
Starting from lo_nxt and hi_nxt, the goal is to find the original lo and hi values. The
other substitutions are easily invertible.
What we really have here, is a linear system in GF(2^8) with 8 equations and 8 unknown variables.
Let us start from the last round of the previous example:
[+] Round 11: Beta Key: LO=9F-DD-35-D9, HI=9D-B2-38-DD ~> LO=87-A0-A2-E3, HI=24-80-6D-CB
Starting from 87-A0-A2-E3-24-80-6D-CB, we want to recover 9F-DD-35-D9-9D-B2-38-DD. The easiest
way to solve this linear system in Galois Fields is to use Sage Math:
F.<x> = GF(2^8, modulus=GF(2^9).fetch_int(0x11D))
a = [
[0b001, 0b011, 0b100, 0b101, 0b0110, 0b1000, 0b1011, 0b0111],
[0b011, 0b001, 0b101, 0b100, 0b1000, 0b0110, 0b0111, 0b1011],
[0b100, 0b101, 0b001, 0b011, 0b1011, 0b0111, 0b0110, 0b1000],
[0b101, 0b100, 0b011, 0b001, 0b0111, 0b1011, 0b1000, 0b0110],
[6, 8, 11, 7, 1, 3, 4, 5],
[0b1000, 0b0110, 0b0111, 0b1011, 0b011, 0b001, 0b101, 0b100],
[0b1011, 0b0111, 0b0110, 0b1000, 0b100, 0b101, 0b001, 0b011],
[0b0111, 0b1011, 0b1000, 0b0110, 0b101, 0b100, 0b011, 0b001]
]
A = Matrix(F, 8, 8)
B = vector([F.fetch_int(i) for i in [0x87, 0xA0, 0xA2, 0xE3, 0x24, 0x80, 0x6D, 0xCB]])
for i in range(8):
A.set_row(i, [F.fetch_int(a[i][j]) for j in range(8)])
x = A.solve_right(B)
print(f'A:\n{A}')
print(f'Solution: {x}')
print(f'Eval: {"-".join("%02X" % i.integer_representation() for i in x)}')
As we can see in the output, we can recover the beta key in the previous round:
A:
[ 1 x + 1 x^2 x^2 + 1 x^2 + x x^3 x^3 + x + 1 x^2 + x + 1]
[ x + 1 1 x^2 + 1 x^2 x^3 x^2 + x x^2 + x + 1 x^3 + x + 1]
[ x^2 x^2 + 1 1 x + 1 x^3 + x + 1 x^2 + x + 1 x^2 + x x^3]
[ x^2 + 1 x^2 x + 1 1 x^2 + x + 1 x^3 + x + 1 x^3 x^2 + x]
[ x^2 + x x^3 x^3 + x + 1 x^2 + x + 1 1 x + 1 x^2 x^2 + 1]
[ x^3 x^2 + x x^2 + x + 1 x^3 + x + 1 x + 1 1 x^2 + 1 x^2]
[x^3 + x + 1 x^2 + x + 1 x^2 + x x^3 x^2 x^2 + 1 1 x + 1]
[x^2 + x + 1 x^3 + x + 1 x^3 x^2 + x x^2 + 1 x^2 x + 1 1]
Solution: (x^7 + x^4 + x^3 + x^2 + x + 1, x^7 + x^6 + x^4 + x^3 + x^2 + 1, x^5 + x^4 + x^2 + 1, x^7 + x^6 + x^4 + x^3 + 1, x^7 + x^4 + x^3 + x^2 + 1, x^7 + x^5 + x^4 + x, x^5 + x^4 + x^3, x^7 + x^6 + x^4 + x^3 + x^2 + 1)
Eval: 9F-DD-35-D9-9D-B2-38-DD
Having that as a building block, we can implement the crack for the beta key: A11466A75557A46Fh:
isbox = [ # inverse sbox
0x92, 0x39, 0xA3, 0x99, 0x5E, 0x57, 0xD2, 0xE1, 0x79, 0x9C, 0xE7, 0x2E, 0x0D, 0x41, 0x19, 0x69,
0x90, 0x66, 0x49, 0xBC, 0x60, 0xF8, 0x6B, 0x5D, 0x6D, 0x15, 0x2F, 0x65, 0x67, 0x1C, 0x8A, 0x26,
0x4B, 0x17, 0x6F, 0x10, 0x78, 0xD9, 0xB3, 0x05, 0xF1, 0xC8, 0xEA, 0x4A, 0x02, 0x47, 0xBF, 0xCC,
0x29, 0x5B, 0x68, 0xA7, 0x54, 0x0B, 0xE8, 0xB5, 0xED, 0x32, 0x62, 0xB7, 0xEC, 0x37, 0x28, 0x9D,
0xF0, 0x0F, 0xDB, 0xF6, 0x71, 0x14, 0xD5, 0x35, 0x93, 0xE9, 0xA5, 0xBB, 0x51, 0x3F, 0x1B, 0x1A,
0x7F, 0x3C, 0xB0, 0x6C, 0x88, 0xE3, 0x3D, 0x0A, 0x61, 0xCF, 0x3A, 0x89, 0xA1, 0x36, 0x2C, 0x2B,
0x7C, 0x63, 0x86, 0xBE, 0x8E, 0x1D, 0x43, 0xA9, 0xEB, 0x7E, 0xD3, 0x12, 0x3E, 0x58, 0xC5, 0xBA,
0x00, 0xD6, 0xE0, 0xA8, 0x48, 0x96, 0x56, 0xFC, 0xD0, 0xC1, 0x76, 0xF3, 0x24, 0x83, 0x55, 0xAD,
0xFE, 0xB8, 0x01, 0xA2, 0x4E, 0x09, 0x20, 0xA0, 0xDC, 0x85, 0x98, 0x40, 0xC3, 0xDE, 0xC7, 0x23,
0xA6, 0x77, 0x1E, 0x13, 0x9F, 0x8B, 0xB9, 0x87, 0xD1, 0x4F, 0x42, 0xB1, 0x6A, 0xAC, 0xFF, 0xC4,
0x82, 0x84, 0xDD, 0x94, 0xEF, 0x16, 0x30, 0xC2, 0x7B, 0x5A, 0x80, 0xDA, 0xE6, 0xFA, 0x0E, 0x22,
0x46, 0x4D, 0x73, 0x04, 0xCE, 0x75, 0xCB, 0x59, 0x21, 0xE2, 0xD7, 0xF4, 0xC6, 0x1F, 0xBD, 0xAE,
0x06, 0xF7, 0x53, 0x74, 0x91, 0x2D, 0xB6, 0xFD, 0xB4, 0xF5, 0x33, 0x52, 0x45, 0xA4, 0x27, 0x72,
0x81, 0x5C, 0x8F, 0xF2, 0xD8, 0x34, 0x3B, 0x5F, 0xB2, 0x38, 0x9B, 0x97, 0x2A, 0x9E, 0x64, 0x50,
0x8C, 0x31, 0xAF, 0xF9, 0x08, 0x07, 0x9A, 0xD4, 0x7A, 0xC0, 0x0C, 0x25, 0x03, 0x18, 0xE5, 0x11,
0x4C, 0xEE, 0x6E, 0xAB, 0xFB, 0xC9, 0xAA, 0x95, 0xE4, 0xCA, 0xDF, 0x44, 0x7D, 0xCD, 0x70, 0x8D
]
rnd_map = [
0x2A, 0x0D, 0x1C, 0x09, 0x48, 0x23, 0x0D, 0x11, 0x74, 0x3A, 0x18, 0x32, 0xB0, 0x66, 0x3A, 0x02,
0xC8, 0x54, 0x10, 0x44, 0x41, 0xEC, 0x54, 0x24, 0xC9, 0xF0, 0x78, 0xD0, 0xDA, 0x81, 0xF0, 0x10,
0x12, 0x60, 0x71, 0x20, 0x34, 0x82, 0x60, 0xA1, 0xE4, 0x00, 0x22, 0x80, 0xA8, 0xC5, 0x00, 0x83,
0x0C, 0xC5, 0x81, 0xC4, 0x94, 0x4E, 0xC5, 0xC2, 0x1B, 0x88, 0x00, 0x8A, 0x2A, 0x9F, 0x88, 0x86,
0x24, 0x05, 0x16, 0x01, 0x42, 0x2B, 0x05, 0x19, 0x58, 0x1A, 0x3C, 0x12, 0x94, 0x46, 0x1A, 0x22,
0xB4, 0x30, 0x6C, 0x40, 0x3D, 0x98, 0x30, 0x60
]
F.<x> = GF(2^8, modulus=GF(2^9).fetch_int((2^8) + 0x1D))
a = [
[0b001, 0b011, 0b100, 0b101, 0b0110, 0b1000, 0b1011, 0b0111],
[0b011, 0b001, 0b101, 0b100, 0b1000, 0b0110, 0b0111, 0b1011],
[0b100, 0b101, 0b001, 0b011, 0b1011, 0b0111, 0b0110, 0b1000],
[0b101, 0b100, 0b011, 0b001, 0b0111, 0b1011, 0b1000, 0b0110],
[6, 8, 11, 7, 1, 3, 4, 5],
[0b1000, 0b0110, 0b0111, 0b1011, 0b011, 0b001, 0b101, 0b100],
[0b1011, 0b0111, 0b0110, 0b1000, 0b100, 0b101, 0b001, 0b011],
[0b0111, 0b1011, 0b1000, 0b0110, 0b101, 0b100, 0b011, 0b001]
]
A = Matrix(F, 8, 8)
to_str = lambda A: '-'.join('%02X' % a for a in A)
for i in range(8):
A.set_row(i, [F.fetch_int(a[i][j]) for j in range(8)])
final = [0x6F, 0xA4, 0x57, 0x55, 0xA7, 0x66, 0x14, 0xA1]
beta_key = final
for i in range(0xB, 1, -1):
beta_key = [b ^^ (0x11*i) for b in beta_key]
beta_key = [b ^^ r for b, r in zip(beta_key, rnd_map[8*(i-1):])]
print(f'[+] Before: {to_str(beta_key)}')
B = vector([F.fetch_int(i) for i in beta_key])
x = A.solve_right(B)
prv = [i.integer_representation() for i in x]
beta_key = [isbox[x] for x in prv]
print(f'[+] After : {to_str(prv)}')
print(f'[+] #{i} Moving 1 round back: {to_str(beta_key)}')
beta_key = [b ^^ (0x11) for b in beta_key]
beta_key = [b ^^ r for b, r in zip(beta_key, rnd_map)]
print(f'[+] Original Beta Key Value: {to_str(beta_key)}')
def int_to_beta_key_to(n):
return ''.join('0123456789ABCDEFGHJKLMNPRTUVWXYZ'[(n >> a) & 0x1F] for a in range(0, 60, 5))
n, i = 0, 0
for b in beta_key:
n |= b << i
i += 8
print(f'[+] Converting to int: {hex(n)}')
print(f'[+] Cracked Beta Key: {int_to_beta_key_to(n)}')
Crack script gives us the following output:
[+] Before: 60-2F-80-AE-21-45-9F-7A
[+] After : 98-A2-43-C5-9B-9E-AD-F4
[+] #11 Moving 1 round back: D1-DD-F6-2D-B1-FF-FA-FB
[+] Before: 23-6D-60-95-8F-13-4A-73
[+] After : 9F-3C-6D-49-E3-04-79-07
[+] #10 Moving 1 round back: C4-EC-58-E9-F9-5E-C1-E1
[+] Before: 79-70-D7-71-22-EC-5D-61
[+] After : CA-D3-39-35-EE-D6-43-33
[+] #9 Moving 1 round back: 33-F2-32-0B-E5-3B-F6-A7
[+] Before: A0-F2-BA-09-47-2C-F6-A9
[+] After : 3A-96-26-DC-8A-5F-0E-58
[+] #8 Moving 1 round back: 62-B9-B3-2A-98-2B-19-61
[+] Before: 19-0B-45-99-7B-12-AB-D4
[+] After : 9A-58-8F-2E-43-EB-8C-9F
[+] #7 Moving 1 round back: 42-61-23-BF-F6-25-C3-C4
[+] Before: C0-07-67-59-38-86-A5-21
[+] After : E8-01-7C-F7-02-2C-39-B6
[+] #6 Moving 1 round back: 7A-39-24-95-A3-02-32-CB
[+] Before: 3D-0C-00-E0-C2-D5-07-3F
[+] After : B2-C7-16-53-0B-DA-0A-15
[+] #5 Moving 1 round back: 73-FD-6B-6C-2E-9B-E7-F8
[+] Before: FE-49-57-F8-B0-5E-53-AC
[+] After : 22-F3-B0-6B-C0-2D-59-B7
[+] #4 Moving 1 round back: 6F-AB-46-12-06-47-CF-59
[+] Before: 94-CC-65-65-74-98-A8-4E
[+] After : 12-1F-12-E3-C7-D3-12-A8
[+] #3 Moving 1 round back: 49-26-49-F9-FD-F2-49-7B
[+] Before: 1F-3E-73-E9-6F-B6-51-5B
[+] After : 9D-57-3D-9C-FB-7B-06-85
[+] #2 Moving 1 round back: AC-0A-37-6A-44-F3-D2-09
[+] Original Beta Key Value: 97-16-3A-72-1D-C1-CE-09
[+] Converting to int: 0x9cec11d723a1697
[+] Cracked Beta Key: PL5L3TM31NKK

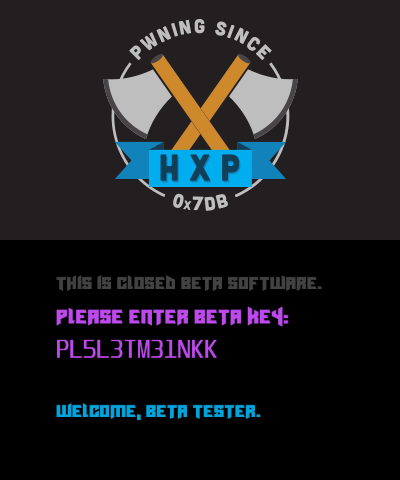

The cracked beta key is PL5L3TM31NKK. We try it and it works :)
Winning the Arkanoid

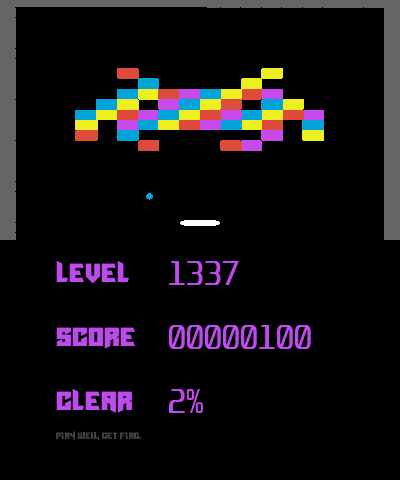

After we successfully enter the main screen, an Arkanoid game starts:

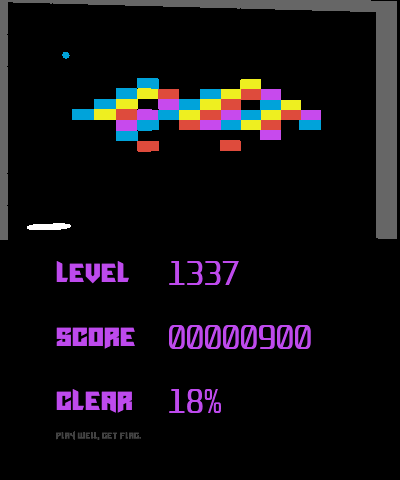

As we hit the bricks, the screen starts tilting, so it becomes very hard to win the game:
Arkanoid loop is handled inside u_main_arkanoid_screen at 0010C8A8h. Function starts with some
initializations. The most important one, is the creation of the “brick” objects:
void __cdecl u_main_arkanoid_screen() {
/* var decls */
/* initialization routines */
jj = 18;
kk = 2;
v11 = ' ';
for ( ptr = &v92; ; ptr += 18 ) {
v13 = ptr;
ii = 0;
while ( 1 ) {
if ( v11 == '#' )
// create object with (addr, ii, jj) and return pointer to it
*(brick_map + 4 * ii) = glo_add_brick(ii, jj);// x, y
if ( ++ii == 18 )
break;
v15 = *++v13;
v11 = v15;
}
--jj;
++kk;
brick_map -= 0x48; // 0x12 * 4 = 0x48
if ( !jj )
break;
v16 = ptr[18];
v11 = v16;
}
for ( i = -1; i != 19; ++i ) {
v18 = dword_1986AC++;
v19 = glo_add_brick(i, 21); // add bricks at the top
glo_corner_bricks[v18] = v19;
}
for ( j = -2; j != 21; ++j ) {
v21 = dword_1986AC++;
v22 = glo_add_brick(-1, j); // add bricks at the left
v23 = dword_1986AC++;
glo_corner_bricks[v21] = v22;
v24 = glo_add_brick(18, j); // add bricks at the right
glo_corner_bricks[v23] = v24;
}
The brick map is an 18x18 array that contains just spaces and # characters. Function iterates
over it and creates a brick object at the appropriate coordinates when it encounters a pound sign.
The brick map is shown below (please note that y coordinates are in the opposite order):
.................. 20
.................. 19
.................. 18
.................. 17
.................. 16
.................. 15
.....#......#..... 14
......#....#...... 13
.....########..... 12
....##.####.##.... 11
...############... 10
...#.########.#... 9
...#.#......#.#... 8
......##..##...... 7
.................. 6
.................. 5
.................. 4
.................. 3
.................. 2
.................. 1
0123456789ABCDEFGH
Function also adds some special bricks that denote the 3 walls (left, top, right).
Then we have the main game loop:
score = 0;
while ( 1 ) { // main game loop
v85 = sub_11B55C();
if ( !v85 )
break;
/* more work */
if ( glo_score <= 4999 ) {
// We haven't scored 5000 points, so keep looping
v40 = glo_score / 4800.0;
v41 = sub_11FAC0();
v42 = v40;
v43 = ((v27 / 450.0) + (v27 / 450.0)) * 3.14159265;
sub_11F730(v41);
unk_1980D0 = (v42 * 0.2) * v43;
v44 = 0x1980DC;
LABEL_27:
while ( 2 ) {
v45 = v44;
v46 = 0;
while ( 1 ) {
v47 = *(v45 + 4);
v45 += 4;
if ( sub_10A3BC(dword_1988B4[0], v47) )
break;
if ( ++v46 == 18 ) {
++v39;
v44 += 72;
if ( v39 != 20 )
goto LABEL_27;
goto SKIP;
}
}
// We hit a block!
obj = dword_1980E0[18 * v39 + v46];
get_x = dword_198D90 + 0x197FE8;
get_y = dword_198D90 + 2;
*(dword_198D90 + 0x198D95) = v46;
*(get_x + 3500) = v39;
v68 = dword_1988B4[0];
*(obj + 60) = get_y;
dword_198D90 = get_y;
sub_10A4A0(v68);
*(*dword_1980E0[18 * v39 + v46] + 1) = 0;
*beta_key_or_score_str_or_prng = 0;
*&beta_key_or_score_str_or_prng[4] = 0;
u_crypt_beta_key_val(
beta_key_or_score_str_or_prng,
(&unk_198D94 + dword_198D90 - 2), // GF(y | x coordinates)
&aPlayWellGetFla[11]);
score += 100;
new_beta_key_ = beta_key_or_score_str_or_prng;
brick_coords_hash = glo_prev_score_cipher;
do {
nbk = *new_beta_key_++;
*brick_coords_hash++ ^= nbk;
} while ( brick_coords_hash != byte_198D84 );
++v39;
v44 += 72;
if ( v39 != 20 )
continue;
break;
}
/* move ball */
if ( !v49 )
continue; // break loop once you score 5000 points
}
break;
}
First of all, we can easily patch the target score if ( glo_score <= 4999 ) {, as we did before

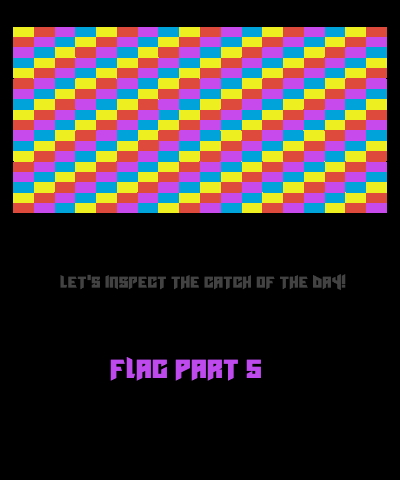

to bypass the anti-emulation check and easily win the game. If we win, a new screen comes out
that has 142 flag parts. However nothing is really visible:
Recovering the Flag
Going back to the Arkanoid screen,
every time we hit a brick, the coordinates of that brick (encoded as a 16-bit word) get encrypted
(same algorithm for beta key encryption but the initial seed is get flag instead of Beta Key)
and then XORed with glo_prev_score_cipher that contains the XOR of all ciphertexts of the brick
coordinates that we have hit so far. Clearly, the order that we hit the bricks does not matter.
If we score 5000 points (e.g., hit 50 bricks), or if we lose, the while loop breaks and
the following code is executed:
// Game has finished (either missed the ball or hit all bricks):
// Algorithm:
// md5 = MD5(.text)
// A = md5[0:8] ^ beta_key_value
// B = md5[9:16] ^ score_gf_hashes
u_memset(md5_obj, 0, 0x68u);
init_hash[0] = 0x67452301; // md5?
init_hash[1] = 0xEFCDAB89;
init_hash[2] = 0x98BADCFE;
init_hash[3] = 0x10325476;
u_md5_hash(md5_obj, 0x100020, 0x32234u); // calc MD5 of all memory code (to ensure it's not tampered)
// MEMORY:08007E4C a10 DCB "10%",0
// MEMORY:08007E50 a0500 DCB "0500",0
u_md5_last_chunk(md5_obj); // last chunk with padding
score_cipher_ = glo_prev_score_cipher;
md5_hash[0] ^= glo_beta_key_val; // 0x723A1697 ^ final_hash[0] (value of beta key)
v73 = md5_hash + 7; // 0x09CEC11D ^ final_hash[1]
do { // xor score GF hashes with the remaining of MD5 digest
sh = *score_cipher_++;
sh_ = sh;
v76 = *++v73;
*v73 = sh_ ^ v76; // remaining of the hash maybe?
} while ( score_cipher_ != byte_198D84 );
u_memset(beta_key_or_score_str_or_prng, 0, 0xC0u);// contains score ("20%\x00"+ "0905\x00") followed by brick map
u_Rijndael_key_schedule(beta_key_or_score_str_or_prng, md5_hash);
u_Rijndael_decrypt(beta_key_or_score_str_or_prng, glo_Rijndael_ciphertext, 0xA00u);// Fill in the bottom (last 16 bytes) of prng
// TEARDOWN STARTS FROM HERE (?)
The XOR of all ciphertexts of all 50 brick coordinates is combined with the beta key value and
the MD5 digest of (almost all) CODE segment (32234h bytes long starting from 100020) which
is 6003eb1327902438c4fefe49cd93a64a, to derive a decryption key.
NOTE: If you try to dump the bytes to compute the MD5, when the program does not you will get an
incorrect result due to the relocations that take place at runtime. To get the correct MD5 digest,
start with a new, clean instance in the emulator, attach IDA to it and then we dump the CODE
segment as follows:
open('code.segm', 'wb').write(bytes(ida_bytes.get_byte(0x100020+i) for i in range(0x32234)))
Once we combine the above keys, we get the final decryption key:
F7-15-D1-61-3A-51-EA-31-22-D5-8F-44-FB-EC-0E-BC
The last 2 functions (u_Rijndael_key_schedule at 00108F10h and u_Rijndael_decrypt at 00108F10h)
implement a classic 128 bit Rijndael using Galois Fields:
void __fastcall u_AES_decrypt(char *a1_out, _BYTE *a2_prng, unsigned int a3_prng_len) {
/* ... more code ... */
do {
v24 = v23[1];
v25 = v23[2];
v26 = v23[3];
v27 = (0x1B * (*v23 >> 7)) ^ (2 * *v23);
v28 = ((0x1B * (v24 >> 7)) ^ (2 * v24));
v29 = ((0x1B * (v26 >> 7)) ^ (2 * v26));
v30 = (0x1B * (v25 >> 7)) ^ (2 * v25);
v31 = *v23 ^ v24;
v32 = *v23 ^ v25 ^ v26;
v33 = v24 ^ v25 ^ v26 ^ v27;
v34 = ((0x1B * (v27 >> 7)) ^ (2 * v27));
v35 = (0x1B * (v28 >> 7)) ^ (2 * v28);
v36 = v26 ^ v31 ^ v30;
v37 = (0x1B * (v30 >> 7)) ^ (2 * v30);
v38 = (0x1B * (v29 >> 7)) ^ (2 * v29);
v39 = v30 ^ v32 ^ v28;
v40 = v29 ^ v36;
v41 = v35 ^ v39;
v42 = v31 ^ v25 ^ v27 ^ v29 ^ v35;
LOBYTE(v29) = v34 ^ v33 ^ v28 ^ v37;
v43 = v40 ^ v34 ^ v37;
LOBYTE(v34) = (0x1B * (v34 >> 7)) ^ (2 * v34);
v44 = (0x1B * (v35 >> 7)) ^ (2 * v35);
v45 = (0x1B * (v37 >> 7)) ^ (2 * v37);
LOBYTE(v29) = v29 ^ v34;
v46 = v41 ^ v38 ^ v34;
v47 = v43 ^ v34 ^ v44;
LOBYTE(v34) = v34 ^ v42 ^ v38;
v48 = (27 * (v38 >> 7)) ^ (2 * v38);
v23[2] = v47 ^ v45 ^ v48;
*v23 = v29 ^ v44 ^ v45 ^ v48;
v23[1] = v46 ^ v44 ^ v45 ^ v48;
v23[3] = v48 ^ v45 ^ v44 ^ v34;
v23 += 4;
} while ( v55 != v23 );
/* ... more code ... */
}
Knowing the algorithm and the decryption key we can now decrypt glo_Rijndael_ciphertext
at 00195000h. The plaintext an ASCII art of 2556 characters that consists only of
spaces and #. Given that flag has 142 parts, we split plaintext into 142 character
columns. Overall, the whole decrpyption process is shown below:
[+] Beta Key Int: 0x09CEC11D723A1697
[+] Beta Key Val: 97-16-3A-72-1D-C1-CE-09
[+] 1: Galois_Fields_Encryption(0x0607) ~> 1D-B7-FD-77-6B-83-79-50 ( 6, 7)
[+] 2: Galois_Fields_Encryption(0x0707) ~> 7D-BF-C3-2A-8B-27-EA-C9 ( 7, 7)
[+] 3: Galois_Fields_Encryption(0x0a07) ~> CF-7E-4D-CC-74-75-63-68 (10, 7)
[+] 4: Galois_Fields_Encryption(0x0b07) ~> D0-2D-C7-10-2A-9A-20-EF (11, 7)
[+] 5: Galois_Fields_Encryption(0x0308) ~> 9F-CB-6E-99-EE-82-82-C0 ( 3, 8)
[+] 6: Galois_Fields_Encryption(0x0508) ~> 64-9C-80-E4-97-8A-B5-0D ( 5, 8)
[+] 7: Galois_Fields_Encryption(0x0c08) ~> 6D-5D-51-01-F8-70-07-7A (12, 8)
[+] 8: Galois_Fields_Encryption(0x0e08) ~> D8-BC-98-0A-A3-E8-28-41 (14, 8)
[+] 9: Galois_Fields_Encryption(0x0309) ~> D9-30-80-B6-70-24-C9-F7 ( 3, 9)
[+] 10: Galois_Fields_Encryption(0x0509) ~> 15-B3-39-83-EF-3A-D9-7E ( 5, 9)
[+] 11: Galois_Fields_Encryption(0x0609) ~> F9-1C-E2-0A-88-69-8C-F4 ( 6, 9)
[+] 12: Galois_Fields_Encryption(0x0709) ~> 31-09-2E-B3-35-C9-B1-A7 ( 7, 9)
[+] 13: Galois_Fields_Encryption(0x0809) ~> 75-AD-39-3C-88-4A-AC-F2 ( 8, 9)
[+] 14: Galois_Fields_Encryption(0x0909) ~> 5A-8D-B7-6B-83-93-D1-D2 ( 9, 9)
[+] 15: Galois_Fields_Encryption(0x0a09) ~> 66-E4-63-CA-36-60-90-B9 (10, 9)
[+] 16: Galois_Fields_Encryption(0x0b09) ~> E1-1E-C1-A9-38-18-95-E5 (11, 9)
[+] 17: Galois_Fields_Encryption(0x0c09) ~> A2-D6-93-EF-AA-34-85-E5 (12, 9)
[+] 18: Galois_Fields_Encryption(0x0e09) ~> BC-A3-9C-49-6F-D5-19-D7 (14, 9)
[+] 19: Galois_Fields_Encryption(0x030a) ~> BF-50-7F-CE-59-DE-4F-8F ( 3, 10)
[+] 20: Galois_Fields_Encryption(0x040a) ~> B3-3E-84-2F-14-1E-20-39 ( 4, 10)
[+] 21: Galois_Fields_Encryption(0x050a) ~> CC-80-1C-62-D6-31-8C-18 ( 5, 10)
[+] 22: Galois_Fields_Encryption(0x060a) ~> CA-7D-5A-A0-6A-99-34-A9 ( 6, 10)
[+] 23: Galois_Fields_Encryption(0x070a) ~> 9F-FF-F4-DC-17-8B-33-3D ( 7, 10)
[+] 24: Galois_Fields_Encryption(0x080a) ~> CF-A5-82-D3-1B-F0-90-55 ( 8, 10)
[+] 25: Galois_Fields_Encryption(0x090a) ~> E9-84-AA-57-2C-6D-B0-84 ( 9, 10)
[+] 26: Galois_Fields_Encryption(0x0a0a) ~> CB-6A-69-05-6A-1D-C7-FB (10, 10)
[+] 27: Galois_Fields_Encryption(0x0b0a) ~> 02-B0-95-3F-E1-9A-43-54 (11, 10)
[+] 28: Galois_Fields_Encryption(0x0c0a) ~> E2-CC-46-AB-E1-2B-07-8D (12, 10)
[+] 29: Galois_Fields_Encryption(0x0d0a) ~> B9-40-D9-29-C9-36-2A-53 (13, 10)
[+] 30: Galois_Fields_Encryption(0x0e0a) ~> 69-5A-08-28-4D-2A-4F-27 (14, 10)
[+] 31: Galois_Fields_Encryption(0x040b) ~> 40-51-79-8E-BC-FC-1A-F1 ( 4, 11)
[+] 32: Galois_Fields_Encryption(0x050b) ~> 46-29-07-3C-7D-E9-A6-28 ( 5, 11)
[+] 33: Galois_Fields_Encryption(0x070b) ~> 9C-9D-D6-A9-DE-E7-35-E6 ( 7, 11)
[+] 34: Galois_Fields_Encryption(0x080b) ~> 1F-2F-96-8A-49-7B-C8-C4 ( 8, 11)
[+] 35: Galois_Fields_Encryption(0x090b) ~> EE-C0-35-A5-1D-92-CA-F3 ( 9, 11)
[+] 36: Galois_Fields_Encryption(0x0a0b) ~> DA-17-1F-2E-1D-35-5D-D9 (10, 11)
[+] 37: Galois_Fields_Encryption(0x0c0b) ~> 0E-B6-98-C9-08-5B-83-60 (12, 11)
[+] 38: Galois_Fields_Encryption(0x0d0b) ~> BC-80-28-16-4E-17-46-A1 (13, 11)
[+] 39: Galois_Fields_Encryption(0x050c) ~> 23-76-04-4D-29-65-72-0C ( 5, 12)
[+] 40: Galois_Fields_Encryption(0x060c) ~> AE-04-DA-D1-93-A6-9F-BB ( 6, 12)
[+] 41: Galois_Fields_Encryption(0x070c) ~> 26-F7-79-18-21-1D-28-36 ( 7, 12)
[+] 42: Galois_Fields_Encryption(0x080c) ~> E5-6E-CF-F4-31-AF-0D-A6 ( 8, 12)
[+] 43: Galois_Fields_Encryption(0x090c) ~> FA-67-E4-09-86-6F-5F-49 ( 9, 12)
[+] 44: Galois_Fields_Encryption(0x0a0c) ~> C4-93-6B-69-BD-D1-C1-9A (10, 12)
[+] 45: Galois_Fields_Encryption(0x0b0c) ~> 13-89-C9-A5-20-22-CE-EF (11, 12)
[+] 46: Galois_Fields_Encryption(0x0c0c) ~> 38-E6-40-34-95-71-E2-E3 (12, 12)
[+] 47: Galois_Fields_Encryption(0x060d) ~> E7-BD-CF-D8-99-95-70-DC ( 6, 13)
[+] 48: Galois_Fields_Encryption(0x0b0d) ~> 3E-25-9A-F0-10-E0-80-DC (11, 13)
[+] 49: Galois_Fields_Encryption(0x050e) ~> 3A-B4-6B-8B-B0-F7-44-7C ( 5, 14)
[+] 50: Galois_Fields_Encryption(0x0c0e) ~> 96-C9-4A-E8-7A-E8-56-A3 (12, 14)
[+] Final score cipher from all bricks: E6-2B-71-0D-36-7F-A8-F6
[+] MD5 of CODE segment: 6003eb1327902438c4fefe49cd93a64a
[+] Final AES key: F7-15-D1-61-3A-51-EA-31-22-D5-8F-44-FB-EC-0E-BC
[+] ASCII art flag:
[+] b' '
[+] b' '
[+] b' '
[+] b' '
[+] b' '
[+] b' ### ##### # ##### ### '
[+] b' # # # # ##### # ##### # # # # #### # # # # # # #### # # # # # '
[+] b' # # # # # # # # # # # # # # # ## ## # # # # # # # '
[+] b' ###### ## # # ## # ###### ##### # # # # ## # ##### #### # # ## ## '
[+] b' # # ## ##### # # # # # # ### ####### # # # # # # ## # '
[+] b' # # # # # # # # # # # # # # # # # # # # # # # # # '
[+] b' # # # # # ### # # # ##### #### # # # ##### #### #### # # ### '
[+] b' ####### ####### '
[+] b' '
[+] b' '
[+] b' '
[+] b' '
[+] b' '
[+] b' '
[+] Program finished. Bye bye :)
Therefore, the final flag is (converted to lowercase, as per description): hxp{th3_g4m3_sux}
Crack Script
#!/usr/bin/env python3
# ----------------------------------------------------------------------------------------
# HXP CTF 2021 - hxp3drm (RE - 714pt)
# ----------------------------------------------------------------------------------------
import hashlib
from Crypto.Cipher import AES
flag_ASCII_ciphertext = [
0xBB, 0x0A, 0xA5, 0x80, 0x4B, 0xCE, 0xEA, 0x06, 0x7D, 0xBA, 0xBD, 0x0F, 0xB6, 0xB2, 0x6E, 0xE6, 0xF2, 0x10, 0xB6, 0x68,
0xA7, 0x06, 0xC2, 0x90, 0x0E, 0x52, 0xE2, 0xAA, 0x56, 0x9E, 0xA6, 0x9F, 0x17, 0x7B, 0x1C, 0x51, 0x75, 0x1F, 0x6B, 0x18,
0x72, 0xA2, 0x84, 0xCB, 0xAB, 0xAC, 0xC1, 0x3E, 0x34, 0x78, 0x4D, 0xE9, 0xF6, 0x03, 0xAD, 0x99, 0xE9, 0xB2, 0x7D, 0x83,
0xFA, 0x76, 0xE0, 0xC6, 0xE4, 0x31, 0x74, 0xD0, 0xDD, 0x78, 0x86, 0xE7, 0xE8, 0x24, 0xB6, 0x1C, 0xC0, 0xE7, 0xB7, 0xE9,
0xCD, 0x36, 0x5B, 0xB2, 0x4D, 0x1F, 0x1E, 0x29, 0x69, 0x84, 0x9D, 0xBC, 0x32, 0x01, 0x42, 0x13, 0x7F, 0x10, 0x0A, 0x05,
0x75, 0x24, 0xF2, 0x1A, 0xBD, 0xC0, 0x3D, 0x6C, 0x73, 0x66, 0xDF, 0xC3, 0x40, 0xFE, 0x07, 0xA3, 0x0E, 0x14, 0xD5, 0xFE,
0x2B, 0xE9, 0xC0, 0x2A, 0xF0, 0x8E, 0xB6, 0xD2, 0xF4, 0x62, 0xFA, 0x89, 0x58, 0xDE, 0xEE, 0x8E, 0x89, 0xA0, 0x79, 0x4E,
0x83, 0x20, 0xDC, 0x61, 0x2D, 0x11, 0x96, 0xF8, 0x42, 0x16, 0xF5, 0x38, 0xD0, 0xA4, 0xC5, 0xF4, 0xCD, 0x68, 0x33, 0xDD,
0x27, 0xAC, 0xAF, 0x13, 0x62, 0x90, 0x69, 0xD6, 0x04, 0x28, 0x5C, 0x13, 0x5B, 0x12, 0x4A, 0x41, 0x29, 0xCA, 0xF7, 0x0D,
0xB4, 0x7D, 0x75, 0x76, 0x78, 0xB1, 0x43, 0xD7, 0xB8, 0x95, 0x28, 0x20, 0xA6, 0x6A, 0x1E, 0xF4, 0x2D, 0x56, 0x29, 0x56,
0xEB, 0x9E, 0xC1, 0x96, 0x0D, 0x07, 0xB9, 0x0B, 0xD6, 0x62, 0x76, 0xAC, 0x62, 0x90, 0x5E, 0x98, 0x6A, 0xDF, 0x66, 0xC8,
0x43, 0x0C, 0xD2, 0x13, 0x69, 0x45, 0x49, 0x48, 0xFF, 0x13, 0xB6, 0x1B, 0xD4, 0x38, 0x7C, 0x9D, 0x7E, 0xF1, 0x61, 0x4C,
0x8D, 0x28, 0x6F, 0x82, 0x0A, 0x38, 0xAE, 0x94, 0xB8, 0xB8, 0x86, 0x45, 0xE1, 0xFE, 0x97, 0x10, 0xDB, 0xD0, 0x5D, 0x65,
0x52, 0x74, 0x89, 0xD6, 0xB3, 0xBB, 0x69, 0x9F, 0x76, 0xCA, 0xBE, 0xE5, 0x4C, 0x68, 0x33, 0xD1, 0x0F, 0xDC, 0xD3, 0x44,
0xBA, 0x4F, 0x61, 0x60, 0x92, 0x58, 0x28, 0x3E, 0x0A, 0xDC, 0xB3, 0x36, 0xE4, 0xDD, 0xC9, 0xA8, 0x21, 0x3A, 0xDA, 0x43,
0x0B, 0x2B, 0xED, 0x2D, 0x8D, 0x50, 0xFD, 0xC0, 0x73, 0xCF, 0xAC, 0x28, 0x1D, 0xE8, 0x0B, 0x96, 0xF4, 0xE8, 0x44, 0x10,
0x76, 0x16, 0xF4, 0x9A, 0x09, 0xE7, 0xB3, 0x4C, 0x0C, 0x8A, 0x24, 0x35, 0xA4, 0xEB, 0x77, 0x56, 0x69, 0x9F, 0x35, 0x3F,
0xE1, 0x9B, 0x37, 0x3F, 0xF5, 0x2B, 0xC6, 0x9D, 0x1F, 0x85, 0x63, 0x50, 0xCD, 0x46, 0xB0, 0x63, 0x70, 0x93, 0x5B, 0x32,
0x1C, 0x63, 0x11, 0x54, 0xB2, 0x99, 0x4F, 0xF1, 0x69, 0xD4, 0x9A, 0xCA, 0x36, 0x77, 0xEB, 0x3D, 0x12, 0xBE, 0x28, 0x61,
0x48, 0xE6, 0x3D, 0x74, 0x53, 0xE9, 0x90, 0x48, 0xA9, 0xA0, 0x67, 0x42, 0xAB, 0x2A, 0x22, 0xCA, 0xC3, 0x46, 0x74, 0x88,
0x36, 0x82, 0x5B, 0xF4, 0xEA, 0xE0, 0xE7, 0x58, 0xA7, 0x73, 0xFE, 0x8E, 0x12, 0x05, 0xC5, 0x9D, 0xB7, 0xDF, 0x1E, 0x53,
0x74, 0x35, 0x48, 0xEA, 0x28, 0x42, 0x7A, 0x6A, 0x92, 0xE5, 0x97, 0xD6, 0xE5, 0x66, 0xE1, 0x85, 0x07, 0x00, 0xA3, 0x6C,
0x65, 0x5A, 0x23, 0x8B, 0x08, 0x7D, 0x29, 0x11, 0xAD, 0xDE, 0x37, 0x57, 0xB3, 0xD4, 0x6D, 0xD1, 0x88, 0x1F, 0xC0, 0xF2,
0x80, 0x00, 0x1B, 0xB6, 0xBD, 0x6C, 0x06, 0xFF, 0x1C, 0xF7, 0x8F, 0xAD, 0xB5, 0xD7, 0x8A, 0xAE, 0xA6, 0xE7, 0x22, 0xE4,
0x9A, 0x42, 0x6A, 0xB8, 0x15, 0x78, 0x4B, 0x80, 0x11, 0x87, 0x20, 0xD4, 0xEA, 0xDD, 0x1C, 0x74, 0xAD, 0x16, 0x3A, 0x35,
0x8B, 0x0E, 0x11, 0x45, 0xE9, 0x61, 0x02, 0x99, 0xE3, 0x06, 0x12, 0xF4, 0xCD, 0x8F, 0x4F, 0x5E, 0xC7, 0x51, 0xA7, 0xE1,
0xFD, 0xEB, 0xC1, 0x93, 0x2A, 0x02, 0x8D, 0xB6, 0x67, 0xBF, 0x88, 0x94, 0x2D, 0x3A, 0xAE, 0xA5, 0x86, 0x75, 0xC3, 0x44,
0x93, 0x98, 0x70, 0x50, 0x1C, 0xF3, 0xB3, 0xAE, 0x6A, 0xEA, 0x18, 0xC9, 0xBE, 0x55, 0xEB, 0x20, 0x9E, 0xDC, 0x8C, 0xC0,
0xA2, 0x4E, 0xFF, 0x1C, 0xBD, 0xCE, 0x84, 0x73, 0x76, 0x74, 0x82, 0x0B, 0x0A, 0x31, 0x43, 0xCD, 0xCF, 0xCA, 0x70, 0x66,
0xC8, 0x52, 0x6E, 0xD2, 0x6A, 0xA8, 0x56, 0x87, 0x0C, 0x3A, 0xCC, 0x7D, 0x74, 0xD4, 0x59, 0xE9, 0x2C, 0x48, 0x9B, 0x7A,
0x8A, 0x9B, 0x10, 0x02, 0xD4, 0xD9, 0x84, 0x42, 0xF4, 0x14, 0xEA, 0x42, 0xFB, 0xB4, 0x73, 0x90, 0x6F, 0x13, 0x06, 0x8B,
0x80, 0x50, 0x35, 0x52, 0x1A, 0x96, 0xFB, 0x4A, 0x7C, 0x1A, 0xF0, 0xF9, 0x9C, 0xF5, 0x8A, 0x21, 0x0F, 0xE8, 0x85, 0x81,
0x86, 0x24, 0x6B, 0xE8, 0xEF, 0x8E, 0x70, 0x85, 0x6A, 0x02, 0x9F, 0x86, 0x22, 0x92, 0x11, 0xC8, 0xA8, 0x0F, 0xE0, 0xD0,
0x06, 0x1E, 0x89, 0xBE, 0x50, 0x6F, 0xF5, 0x87, 0x41, 0x39, 0x6E, 0xB4, 0x1C, 0x64, 0x59, 0xCD, 0x07, 0x3E, 0xE6, 0x90,
0x6B, 0x48, 0x6C, 0xFF, 0x7C, 0xE6, 0x99, 0xCA, 0x4B, 0x8B, 0x77, 0x21, 0x01, 0x2B, 0x2F, 0x84, 0x67, 0xA3, 0x82, 0x68,
0x8F, 0x8E, 0xCB, 0xB5, 0x16, 0x3C, 0x5C, 0x77, 0x00, 0x95, 0xDE, 0x14, 0x5E, 0x78, 0x8B, 0x6A, 0x54, 0x53, 0x0F, 0x3D,
0x89, 0xF3, 0xB8, 0x8B, 0x0B, 0xE0, 0xF1, 0xBD, 0xAE, 0x8C, 0x44, 0x49, 0xDB, 0x7A, 0xD5, 0x43, 0x7A, 0x92, 0x13, 0x8D,
0x7A, 0x64, 0x4D, 0x35, 0x65, 0x97, 0x5E, 0xFA, 0x02, 0xCC, 0x01, 0xCC, 0x7F, 0x49, 0x86, 0x22, 0x0B, 0xCE, 0x91, 0x13,
0x8F, 0xF4, 0x74, 0x3E, 0xA8, 0x3A, 0xDC, 0xD2, 0x44, 0x99, 0x13, 0x39, 0x22, 0x23, 0x96, 0x77, 0xB6, 0x9D, 0xEC, 0x06,
0xF4, 0x42, 0x14, 0xED, 0x6E, 0x09, 0x54, 0x68, 0xE4, 0x11, 0x17, 0x7E, 0xFB, 0xD0, 0x3F, 0x50, 0xA6, 0x91, 0xEF, 0x49,
0xCA, 0xDB, 0xFD, 0x7C, 0x9A, 0x5F, 0x40, 0x17, 0xF3, 0x58, 0x38, 0xBB, 0x32, 0x7E, 0x72, 0xCD, 0x71, 0x9E, 0x8B, 0xE7,
0x88, 0xC8, 0x87, 0x4B, 0xE5, 0x87, 0x7C, 0x8C, 0x60, 0x28, 0x01, 0x28, 0x66, 0xEF, 0xA7, 0x86, 0xB2, 0x9D, 0xFE, 0x9E,
0xCD, 0xA5, 0x67, 0xE4, 0xB1, 0x1D, 0xD8, 0x3F, 0x0D, 0xA7, 0x1E, 0x1F, 0xDF, 0xFD, 0x3D, 0x6A, 0xED, 0xCE, 0x2E, 0x14,
0x50, 0xCD, 0xA2, 0xAF, 0xE0, 0xB7, 0x5A, 0x41, 0xE5, 0xCE, 0xDC, 0x52, 0xE5, 0xDA, 0xB7, 0x45, 0xF6, 0x95, 0x31, 0x4F,
0x51, 0xCA, 0xCE, 0xC4, 0x19, 0x17, 0x6A, 0xE5, 0x04, 0x66, 0xEC, 0xF5, 0x74, 0x24, 0xC4, 0x11, 0x44, 0x7D, 0x02, 0x3D,
0x9B, 0x2A, 0xC4, 0x23, 0xB0, 0xD4, 0xC7, 0x1F, 0xA9, 0x90, 0x26, 0xCB, 0x66, 0xA7, 0xC0, 0xD2, 0xAE, 0xB9, 0x58, 0xDB,
0xDA, 0x1C, 0x16, 0x0C, 0x10, 0xDF, 0xAB, 0x42, 0x42, 0xFF, 0xEE, 0xF8, 0xE7, 0x30, 0x9A, 0x76, 0x4C, 0xC6, 0x94, 0xC9,
0x98, 0x3F, 0x2F, 0x89, 0x68, 0x3B, 0xCE, 0xF9, 0xBB, 0x19, 0xFF, 0x87, 0x1C, 0x39, 0x05, 0xB4, 0x20, 0x0A, 0x11, 0xE2,
0x1E, 0xA3, 0x0A, 0x27, 0xC9, 0xC5, 0xC9, 0xAD, 0x7F, 0xFB, 0xD3, 0xC2, 0x52, 0x7F, 0x7F, 0x7D, 0xFB, 0x8A, 0x8E, 0xCE,
0x6E, 0xDB, 0x20, 0x05, 0x2A, 0x1F, 0xE3, 0x46, 0xB9, 0x82, 0xC6, 0xB4, 0x86, 0x60, 0x7E, 0x32, 0x1C, 0xC8, 0x8B, 0x56,
0x54, 0xAF, 0xD7, 0x47, 0x01, 0xFC, 0x04, 0x39, 0x8F, 0xBA, 0xFC, 0x84, 0x9D, 0x64, 0x87, 0x3D, 0x75, 0x41, 0x34, 0xA4,
0xD0, 0xDC, 0x39, 0x84, 0xF2, 0xE9, 0x83, 0xB9, 0x76, 0x38, 0x6B, 0xAC, 0x88, 0x91, 0x65, 0xE8, 0xB6, 0x56, 0xBD, 0x9C,
0xD7, 0x0B, 0xD7, 0x39, 0x82, 0x6B, 0x3B, 0x0A, 0xC0, 0x54, 0xE1, 0x36, 0xA7, 0xC1, 0x96, 0xC5, 0xA0, 0xC8, 0x33, 0x83,
0x79, 0x1C, 0xD9, 0xCE, 0xAA, 0x65, 0xCF, 0xAF, 0xF5, 0x04, 0x69, 0x87, 0xCB, 0x08, 0xA2, 0x82, 0x54, 0xD8, 0xDB, 0x09,
0xB5, 0xCB, 0x7E, 0x7E, 0x19, 0x87, 0x56, 0x6B, 0xC5, 0x61, 0x1E, 0xD7, 0x8C, 0xB7, 0x4D, 0x71, 0x00, 0x75, 0xFB, 0xDF,
0x85, 0x0A, 0xAD, 0xDE, 0x2A, 0x46, 0xDD, 0xE3, 0xC5, 0xBC, 0xE9, 0x34, 0x86, 0xD1, 0x18, 0x6A, 0x6A, 0x00, 0xBD, 0xFB,
0x1D, 0xAA, 0xD6, 0x31, 0x0C, 0x5D, 0xE5, 0x85, 0x78, 0x06, 0x41, 0xC0, 0xB1, 0x4A, 0xF8, 0x2D, 0x61, 0x75, 0x19, 0x3A,
0xA9, 0x2C, 0x25, 0x28, 0x4A, 0x67, 0x8A, 0x2E, 0xB4, 0x5B, 0x5A, 0xD9, 0x9C, 0x6E, 0x2E, 0x6A, 0x5B, 0xED, 0xCB, 0xF0,
0x9B, 0x82, 0xC0, 0x5C, 0xEB, 0xA9, 0x47, 0xA9, 0x9C, 0xB5, 0xD0, 0xD9, 0x45, 0x43, 0x10, 0x36, 0xFC, 0xE0, 0x3B, 0xF0,
0x85, 0x8A, 0x7B, 0x88, 0x46, 0x33, 0x08, 0xCA, 0x5E, 0xE3, 0x3F, 0xFB, 0xF1, 0x59, 0x9F, 0xD3, 0x12, 0x70, 0x2A, 0x03,
0xB9, 0x2A, 0xF2, 0xF6, 0x2E, 0x71, 0x70, 0x62, 0xE8, 0x2C, 0x03, 0xC9, 0xBD, 0xAE, 0x8A, 0xC7, 0xFF, 0xA1, 0x7B, 0x39,
0xAA, 0x07, 0xF5, 0xC1, 0x3A, 0x9D, 0x4A, 0x1E, 0x86, 0x2D, 0x59, 0xD8, 0x49, 0x6A, 0x33, 0x1E, 0x62, 0xF4, 0x4B, 0x64,
0x21, 0xE6, 0xB2, 0x4F, 0x7E, 0x4F, 0x5D, 0xD0, 0xC4, 0x6C, 0xEF, 0x15, 0x10, 0x74, 0x4E, 0x3D, 0x3D, 0x6A, 0xEC, 0x3B,
0xB1, 0x11, 0x9F, 0xFE, 0x79, 0xAB, 0xBC, 0xCF, 0xC8, 0xD3, 0x88, 0x46, 0x2D, 0xF8, 0xE5, 0xA9, 0x1A, 0x9B, 0x2B, 0x75,
0x49, 0x17, 0x94, 0xCC, 0x5B, 0xCE, 0x63, 0xAD, 0x72, 0x4B, 0x16, 0x53, 0xA1, 0xCB, 0x9E, 0x75, 0xA8, 0x5C, 0x87, 0x5B,
0x88, 0x5E, 0xC4, 0x90, 0xCC, 0x29, 0x6E, 0xF3, 0xBA, 0x30, 0xA3, 0xF5, 0x4C, 0xC5, 0x9E, 0x17, 0xED, 0x9D, 0xF7, 0xB1,
0x15, 0x84, 0x66, 0x17, 0x21, 0xA2, 0xA3, 0xE2, 0xFF, 0x37, 0x19, 0x85, 0x6A, 0xCC, 0xEC, 0x26, 0x3D, 0xA5, 0xC3, 0x6D,
0xC7, 0x92, 0xEF, 0xA2, 0xED, 0x1F, 0xC5, 0xA5, 0xD6, 0xEA, 0x13, 0x57, 0x78, 0xF2, 0xB9, 0x2A, 0x0F, 0x44, 0x16, 0x99,
0x6B, 0x1A, 0x7B, 0xD0, 0xCB, 0x7A, 0xA1, 0xAD, 0x89, 0x69, 0xE5, 0x6A, 0x6A, 0xCB, 0x45, 0xF3, 0xB6, 0x02, 0xA7, 0x12,
0x57, 0xF2, 0xE9, 0x3D, 0xB2, 0x51, 0xD9, 0x47, 0x39, 0xB0, 0xCA, 0x5D, 0x7F, 0xD0, 0x9F, 0xD8, 0xE3, 0xDA, 0x81, 0x2E,
0x9E, 0x6A, 0x6B, 0x2D, 0xA3, 0xB4, 0x57, 0xFB, 0x11, 0xA3, 0xA5, 0xFA, 0x0A, 0x88, 0x1B, 0xB2, 0x52, 0x36, 0xE6, 0xB2,
0x4D, 0x08, 0x8B, 0x4F, 0xF8, 0xFA, 0x3A, 0x6A, 0xF4, 0x66, 0x47, 0xC6, 0xC4, 0xD9, 0x5D, 0xEF, 0x91, 0x13, 0x10, 0x8D,
0x26, 0xCE, 0xD1, 0xFC, 0xCC, 0xC2, 0x37, 0x53, 0xEC, 0xAE, 0x7F, 0x17, 0x3E, 0x54, 0xA9, 0x41, 0x7C, 0x65, 0xF8, 0x99,
0xBE, 0x5B, 0xD6, 0xB7, 0xA1, 0x98, 0x8B, 0xA3, 0xF2, 0x84, 0xC1, 0x07, 0xF1, 0xF9, 0xF1, 0x57, 0x7D, 0xFB, 0x07, 0x9C,
0x72, 0x12, 0xD0, 0x44, 0xA3, 0x53, 0x73, 0xF0, 0x2B, 0x3D, 0x0C, 0xBD, 0xE3, 0xE2, 0xFD, 0xB3, 0x3D, 0x68, 0xA1, 0xC1,
0xE8, 0xBD, 0x0E, 0xFF, 0xB3, 0x3B, 0x1B, 0x42, 0xFC, 0xE1, 0xBA, 0xA4, 0x12, 0xC7, 0xAA, 0xEA, 0x29, 0x37, 0xBC, 0x53,
0x7F, 0x75, 0xB4, 0x2E, 0x59, 0x42, 0xE3, 0x31, 0x69, 0xFE, 0x5E, 0x77, 0x81, 0x37, 0x3B, 0xC5, 0xF7, 0xD0, 0x48, 0x5A,
0x9F, 0x8B, 0x76, 0x66, 0xBF, 0xF3, 0x7D, 0x7E, 0x06, 0x0A, 0xB9, 0x3B, 0x6A, 0x99, 0xDE, 0xC7, 0x38, 0x9A, 0x31, 0x81,
0xF5, 0x66, 0xE4, 0x27, 0xE8, 0x30, 0x5F, 0x76, 0x43, 0x1A, 0x58, 0xCB, 0xAC, 0xA3, 0x90, 0xBC, 0x72, 0x6A, 0x89, 0x8B,
0x64, 0xEE, 0xDE, 0x1C, 0x3F, 0xF3, 0xD9, 0xC9, 0x1A, 0xE3, 0xC5, 0x1E, 0x05, 0x3A, 0xE6, 0x19, 0x3C, 0xD9, 0x9F, 0x03,
0x9F, 0x67, 0x1B, 0xFB, 0x72, 0x19, 0x64, 0xA3, 0x8E, 0xB8, 0x37, 0xBD, 0xE0, 0x8F, 0xFE, 0x40, 0x75, 0x45, 0x89, 0x22,
0xB2, 0x79, 0x52, 0x66, 0xD6, 0xA9, 0x41, 0xE3, 0xA3, 0x2C, 0x32, 0xF8, 0x27, 0xAE, 0x6F, 0x3B, 0x87, 0x66, 0xF7, 0xC0,
0x52, 0x4E, 0x76, 0x76, 0x43, 0x09, 0xEC, 0xF9, 0x44, 0x31, 0xCD, 0x53, 0x67, 0x6C, 0x0A, 0xB5, 0xD7, 0xAE, 0xE1, 0x97,
0x29, 0xEF, 0x4E, 0x25, 0xE3, 0xE8, 0xF4, 0x2F, 0x58, 0x04, 0xA6, 0x6E, 0x6D, 0x31, 0xF8, 0xBF, 0x7C, 0x37, 0xFB, 0x03,
0xFB, 0x4E, 0x99, 0xE9, 0x4F, 0x01, 0x13, 0x25, 0xF9, 0x1F, 0x78, 0xC2, 0x9F, 0x28, 0xB1, 0x44, 0x3A, 0xB1, 0xE0, 0x1E,
0x30, 0x29, 0xAA, 0xD3, 0x29, 0x2F, 0xE0, 0xFD, 0xC3, 0xE4, 0x0E, 0x28, 0x74, 0x27, 0x1A, 0x94, 0x55, 0xBB, 0xD8, 0x34,
0xE2, 0x41, 0x8C, 0x4E, 0xD2, 0xC3, 0xA6, 0xE0, 0x28, 0x9B, 0x39, 0x03, 0x85, 0x9C, 0x97, 0x77, 0x6F, 0x6C, 0xA8, 0x0E,
0x1A, 0x60, 0x12, 0xAD, 0x49, 0xF8, 0xE0, 0xD7, 0x3B, 0x55, 0x37, 0xD1, 0x79, 0x45, 0xF1, 0xA2, 0xF7, 0xDE, 0x04, 0x68,
0xBF, 0x2A, 0x39, 0xC8, 0x67, 0x2B, 0xB6, 0x54, 0xFA, 0x02, 0xE3, 0x7A, 0x5F, 0x1B, 0x08, 0xB9, 0x6F, 0x0A, 0xBC, 0x4D,
0x96, 0xC4, 0xF1, 0x6A, 0xC4, 0xFB, 0x42, 0x53, 0xBA, 0xEC, 0xB1, 0x4C, 0xF1, 0x29, 0xA6, 0x93, 0xE0, 0xF9, 0x2C, 0xB0,
0x32, 0x02, 0x94, 0x98, 0xA6, 0xEA, 0x5C, 0x3B, 0xC0, 0x59, 0x2E, 0x53, 0x00, 0x15, 0xD5, 0x5D, 0x38, 0x08, 0xCC, 0x19,
0x63, 0x48, 0x6C, 0x77, 0xBA, 0x9D, 0x42, 0x50, 0x6A, 0x10, 0x4B, 0xE2, 0x4B, 0xC5, 0xAC, 0x92, 0x63, 0xC4, 0xF7, 0x98,
0xD2, 0x7A, 0x13, 0xDB, 0x9E, 0xFA, 0xA8, 0xA1, 0x67, 0x99, 0x85, 0x12, 0xD1, 0x5E, 0xBB, 0xA6, 0x04, 0xF1, 0xAB, 0x25,
0x8A, 0xAB, 0xDA, 0xF2, 0xBE, 0xC0, 0x41, 0x64, 0x07, 0x6A, 0xA4, 0xB9, 0xE2, 0x31, 0xF1, 0x97, 0xA2, 0x45, 0xFC, 0x8D,
0xC5, 0x6A, 0x2A, 0x66, 0xD7, 0x9E, 0xD0, 0x18, 0xE9, 0xD5, 0x3D, 0x8F, 0x23, 0xA2, 0xBB, 0x85, 0xB9, 0x0D, 0xFE, 0x24,
0xD3, 0xE6, 0xC7, 0x2B, 0x69, 0x4A, 0x4E, 0xBF, 0xBF, 0xA4, 0x9A, 0x8E, 0xFD, 0x1F, 0xF9, 0x6F, 0x58, 0x1A, 0x2C, 0xF3,
0x11, 0xBA, 0x19, 0x4F, 0x85, 0x2A, 0x86, 0x03, 0x1A, 0x8D, 0xA3, 0xB7, 0x3C, 0xB4, 0xF0, 0x63, 0xC9, 0xCC, 0x85, 0xBA,
0xEA, 0x16, 0x88, 0x4B, 0x5B, 0x7C, 0xA0, 0x54, 0x88, 0x38, 0xC4, 0x6A, 0xCD, 0x0C, 0xC0, 0x28, 0x8C, 0x56, 0x70, 0xF8,
0x35, 0xE2, 0x4F, 0x4A, 0x94, 0xF5, 0xF5, 0x64, 0x30, 0x41, 0xCA, 0x4B, 0x60, 0x70, 0x29, 0x8B, 0x4E, 0xAB, 0x2D, 0x36,
0x1C, 0xEF, 0xB6, 0xD0, 0xFB, 0xE9, 0x26, 0x12, 0x09, 0xE2, 0xCE, 0x5C, 0x6E, 0x79, 0xF6, 0x16, 0x3C, 0x00, 0xC4, 0xA3,
0x6D, 0x2B, 0xB0, 0xD0, 0x24, 0xAC, 0xCC, 0xB4, 0x00, 0x38, 0x78, 0x76, 0xD2, 0x68, 0x75, 0xD1, 0x65, 0x7E, 0x85, 0xFB,
0x6D, 0x93, 0x9A, 0xA8, 0x0A, 0xEA, 0x34, 0xA8, 0xEB, 0x48, 0x1B, 0x86, 0x6F, 0x41, 0xF5, 0x70, 0x33, 0xEE, 0x01, 0xEF,
0x91, 0xCD, 0xD2, 0xFC, 0xE5, 0xD3, 0x04, 0xA5, 0xF5, 0xA1, 0xDD, 0xEA, 0xFD, 0xC7, 0x0C, 0x93, 0xC3, 0x8B, 0xA5, 0x1E,
0xD0, 0x25, 0x8E, 0x43, 0xC9, 0x05, 0xE9, 0x18, 0x91, 0xC9, 0x07, 0xA7, 0x37, 0xC6, 0x95, 0x72, 0x9D, 0x54, 0x83, 0xB7,
0x23, 0x86, 0x68, 0x70, 0x91, 0x9A, 0x66, 0xB8, 0xA5, 0x9D, 0x1D, 0x10, 0xDD, 0x12, 0x0D, 0xB6, 0xB0, 0x85, 0xB6, 0xDE,
0x30, 0xAE, 0xCC, 0x7D, 0xB7, 0xE3, 0xF0, 0xDB, 0x2C, 0x82, 0xBF, 0xB9, 0x1B, 0xB3, 0xF6, 0xD5, 0xF6, 0x5C, 0x7B, 0x67,
0x7A, 0x49, 0xB5, 0x14, 0x55, 0x0D, 0x3A, 0xF2, 0x72, 0xEE, 0x22, 0x5B, 0x39, 0xC2, 0xAD, 0x75, 0xDE, 0x87, 0x44, 0x74,
0xF5, 0x73, 0x54, 0xC2, 0x0D, 0x98, 0x68, 0xCB, 0x39, 0xD2, 0xA3, 0x19, 0xE7, 0xAC, 0x46, 0x64, 0x32, 0x6B, 0x44, 0x96,
0xB6, 0x18, 0x42, 0x32, 0x44, 0x3C, 0x21, 0xD8, 0x5E, 0x2D, 0xF7, 0xF9, 0xCC, 0x38, 0x41, 0xE6, 0x31, 0xBE, 0x09, 0x0D,
0x9D, 0x5C, 0x1B, 0x85, 0xBF, 0x31, 0x30, 0x8E, 0x59, 0x51, 0x97, 0xB5, 0xE4, 0xE3, 0x3F, 0x2E, 0x7B, 0xA8, 0x1C, 0x5E,
0x6A, 0x8F, 0xC8, 0x72, 0xCC, 0x57, 0xE4, 0x8A, 0xEC, 0x95, 0xF9, 0x5B, 0xA3, 0xF8, 0xF3, 0x9F, 0xB4, 0xDB, 0x6C, 0x4B,
0xD7, 0x7D, 0xFC, 0x93, 0x70, 0x5B, 0x2A, 0xB8, 0x81, 0xEB, 0x14, 0x62, 0xA3, 0xBA, 0x6A, 0xB2, 0x40, 0xC6, 0x70, 0xF6,
0xC7, 0x27, 0x21, 0xCF, 0x11, 0x78, 0x42, 0x44, 0x91, 0x81, 0x66, 0x32, 0x0B, 0x8D, 0xDA, 0x6A, 0x2D, 0x87, 0xCF, 0xC9,
0x90, 0xF8, 0xB8, 0x0F, 0x69, 0x9B, 0xFF, 0x34, 0xFF, 0xC1, 0x59, 0x5F, 0xD6, 0xCE, 0xC1, 0x77, 0x01, 0x76, 0x68, 0x7D,
0xCB, 0x05, 0x4C, 0x7D, 0x0B, 0x2D, 0x2A, 0xCF, 0x2A, 0x3F, 0x97, 0x35, 0x74, 0xF6, 0xC1, 0x37, 0xE4, 0xE0, 0x1C, 0x20,
0x75, 0xDA, 0xA7, 0xF6, 0x46, 0xEF, 0xBB, 0x24, 0x81, 0x9B, 0x32, 0x0E, 0x14, 0x32, 0x16, 0x9B, 0x87, 0x80, 0x68, 0x31,
0x2B, 0x86, 0xB5, 0x2B, 0xC4, 0xD5, 0x59, 0xAE, 0xF7, 0xEB, 0x79, 0xFE, 0xE8, 0x26, 0x81, 0x32, 0x2C, 0x43, 0x34, 0x97,
0x66, 0x66, 0x2D, 0x13, 0x33, 0x7F, 0xAC, 0x58, 0x5F, 0x5A, 0x52, 0xAE, 0x0C, 0x4A, 0xA2, 0xAB, 0x40, 0x98, 0x18, 0xDD,
0x09, 0x36, 0x9D, 0x6F, 0x47, 0xDA, 0x6A, 0x13, 0x14, 0xE7, 0x9C, 0xDC, 0xF7, 0x33, 0x5D, 0xFB, 0xB4, 0x8A, 0x43, 0x4E,
0xA9, 0x23, 0xDB, 0xA5, 0xDB, 0xC2, 0x18, 0xC6, 0xA3, 0x90, 0xBB, 0xDB, 0x7F, 0x25, 0xFB, 0xC7, 0xFA, 0xE3, 0x58, 0xB0,
0xF0, 0x0F, 0x0E, 0x90, 0x3C, 0x8B, 0x31, 0x3B, 0xDE, 0xA1, 0x77, 0xE5, 0x33, 0xAD, 0xE4, 0x89, 0x74, 0x47, 0xBE, 0x1B,
0xCA, 0x4E, 0xC8, 0xE0, 0x36, 0x5D, 0x8C, 0x0B, 0x2E, 0xEC, 0x8E, 0x66, 0x7F, 0x61, 0x41, 0x76, 0xA1, 0xC6, 0x94, 0x3C,
0xF4, 0x52, 0x27, 0x25, 0xC0, 0x9D, 0x2E, 0x39, 0x9B, 0x5D, 0x5A, 0x60, 0xD0, 0xF7, 0x42, 0x62, 0x45, 0x34, 0x22, 0xBA,
0xDC, 0x43, 0xF2, 0x1A, 0xCE, 0xBE, 0x28, 0x0C, 0x6E, 0x58, 0xEE, 0xA3, 0xBD, 0xEB, 0x76, 0x9C, 0x25, 0x3C, 0x7B, 0x1E,
0x77, 0x06, 0x6D, 0xCC, 0x3F, 0xCC, 0xAD, 0x44, 0x96, 0xC9, 0x27, 0x92, 0x8B, 0x69, 0xCB, 0x3F, 0x7E, 0x7E, 0x25, 0xC6,
0x95, 0x4A, 0x37, 0x14, 0x9E, 0x43, 0xDB, 0x96, 0x1C, 0x43, 0xA9, 0xC8, 0xAD, 0xEF, 0xF8, 0x5E, 0x42, 0x41, 0xDA, 0x40,
0xAA, 0xD9, 0x11, 0x87, 0x4C, 0xAB, 0xCC, 0x30, 0x4B, 0x8E, 0xBD, 0x6B, 0x38, 0x1F, 0xF0, 0xD0, 0xB9, 0xF3, 0x4E, 0xFA,
0x9A, 0x32, 0xE6, 0xCC, 0xC2, 0x38, 0xF7, 0x10, 0x10, 0xE2, 0x8B, 0x48, 0xD5, 0x7B, 0x67, 0x9A, 0x4E, 0x6C, 0xB8, 0x8B
]
sbox = [
0x70, 0x82, 0x2C, 0xEC, 0xB3, 0x27, 0xC0, 0xE5, 0xE4, 0x85, 0x57, 0x35, 0xEA, 0x0C, 0xAE, 0x41,
0x23, 0xEF, 0x6B, 0x93, 0x45, 0x19, 0xA5, 0x21, 0xED, 0x0E, 0x4F, 0x4E, 0x1D, 0x65, 0x92, 0xBD,
0x86, 0xB8, 0xAF, 0x8F, 0x7C, 0xEB, 0x1F, 0xCE, 0x3E, 0x30, 0xDC, 0x5F, 0x5E, 0xC5, 0x0B, 0x1A,
0xA6, 0xE1, 0x39, 0xCA, 0xD5, 0x47, 0x5D, 0x3D, 0xD9, 0x01, 0x5A, 0xD6, 0x51, 0x56, 0x6C, 0x4D,
0x8B, 0x0D, 0x9A, 0x66, 0xFB, 0xCC, 0xB0, 0x2D, 0x74, 0x12, 0x2B, 0x20, 0xF0, 0xB1, 0x84, 0x99,
0xDF, 0x4C, 0xCB, 0xC2, 0x34, 0x7E, 0x76, 0x05, 0x6D, 0xB7, 0xA9, 0x31, 0xD1, 0x17, 0x04, 0xD7,
0x14, 0x58, 0x3A, 0x61, 0xDE, 0x1B, 0x11, 0x1C, 0x32, 0x0F, 0x9C, 0x16, 0x53, 0x18, 0xF2, 0x22,
0xFE, 0x44, 0xCF, 0xB2, 0xC3, 0xB5, 0x7A, 0x91, 0x24, 0x08, 0xE8, 0xA8, 0x60, 0xFC, 0x69, 0x50,
0xAA, 0xD0, 0xA0, 0x7D, 0xA1, 0x89, 0x62, 0x97, 0x54, 0x5B, 0x1E, 0x95, 0xE0, 0xFF, 0x64, 0xD2,
0x10, 0xC4, 0x00, 0x48, 0xA3, 0xF7, 0x75, 0xDB, 0x8A, 0x03, 0xE6, 0xDA, 0x09, 0x3F, 0xDD, 0x94,
0x87, 0x5C, 0x83, 0x02, 0xCD, 0x4A, 0x90, 0x33, 0x73, 0x67, 0xF6, 0xF3, 0x9D, 0x7F, 0xBF, 0xE2,
0x52, 0x9B, 0xD8, 0x26, 0xC8, 0x37, 0xC6, 0x3B, 0x81, 0x96, 0x6F, 0x4B, 0x13, 0xBE, 0x63, 0x2E,
0xE9, 0x79, 0xA7, 0x8C, 0x9F, 0x6E, 0xBC, 0x8E, 0x29, 0xF5, 0xF9, 0xB6, 0x2F, 0xFD, 0xB4, 0x59,
0x78, 0x98, 0x06, 0x6A, 0xE7, 0x46, 0x71, 0xBA, 0xD4, 0x25, 0xAB, 0x42, 0x88, 0xA2, 0x8D, 0xFA,
0x72, 0x07, 0xB9, 0x55, 0xF8, 0xEE, 0xAC, 0x0A, 0x36, 0x49, 0x2A, 0x68, 0x3C, 0x38, 0xF1, 0xA4,
0x40, 0x28, 0xD3, 0x7B, 0xBB, 0xC9, 0x43, 0xC1, 0x15, 0xE3, 0xAD, 0xF4, 0x77, 0xC7, 0x80, 0x9E
]
brick_map = [
'..................',
'..................',
'..................',
'..................',
'..................',
'..................',
'.....#......#.....',
'......#....#......',
'.....########.....',
'....##.####.##....',
'...############...',
'...#.########.#...',
'...#.#......#.#...',
'......##..##......',
'..................',
'..................',
'..................',
'..................',
'..................',
'..................'
]
# ----------------------------------------------------------------------------------------
# Helper routines for cracking.
to_str = lambda A: '-'.join('%02X' % a for a in A)
int_to_beta_key_to = lambda n: \
''.join('0123456789ABCDEFGHJKLMNPRTUVWXYZ'[(n >> a) & 0x1F] for a in range(0, 60, 5))
def beta_key_to_int(key):
n = 0
for i in key[::-1]:
n = (n << 5) | '0123456789ABCDEFGHJKLMNPRTUVWXYZ'.index(i)
return n
qword_to_list = lambda q: [(q >> i) & 0xFF for i in range(0, 64, 8)] # little endian.
# ----------------------------------------------------------------------------------------
def galois_encryption(beta_key_int, rnd_seed, verbose=False):
"""Custom encryption using Galois Fields."""
if verbose: print(f'[+] Encrypting beta key value: {beta_key_int:016X}')
# Generate random map.
# For `rnd_seed` = 'Beta Key' the expected value for `rnd_map is:
#
# 2A 0D 1C 09 48 23 0D 11 74 3A 18 32 B0 66 3A 02
# C8 54 10 44 41 EC 54 24 C9 F0 78 D0 DA 81 F0 10
# 12 60 71 20 34 82 60 A1 E4 00 22 80 A8 C5 00 83
# 0C C5 81 C4 94 4E C5 C2 1B 88 00 8A 2A 9F 88 86
# 24 05 16 01 42 2B 05 19 58 1A 3C 12 94 46 1A 22
# B4 30 6C 40 3D 98 30 60
rnd_map = []
for i, a in enumerate('hxp{certainlynotaflag}'[:11]):
for b in rnd_seed[:8]:
rnd_map.append(((((ord(b) ^ ord(a)) + (i >> 3)) >> (8 - (i & 7))) |
(((ord(b) ^ ord(a)) + (i >> 3)) << (i & 7))) & 0xFF)
if verbose: print(f'[+] Random map: {to_str(rnd_map)}')
beta_key = beta_key_int.to_bytes(8, 'little')
if verbose: print(f'[+] Beta key as list: {to_str(beta_key)}')
beta_key = [b ^ r ^ 0x11 for b, r in zip(beta_key, rnd_map)]
if verbose: print(f'[+] Beta key after XOR : {to_str(beta_key)}')
# ----------------------------------------------------------------
# Helper routines for Galois Fields.
# ----------------------------------------------------------------
#
# Addition & multiplication in GF(2^8) using: x^8 + x^4 + x^3 + x^2 + 1.
def GFadd(a, b): return a ^ b
def GFmul(a, b):
p = 0
while a != 0 and b != 0:
if (b & 1):
p ^= a;
if a & 0x80:
a = (a << 1) ^ 0x11D
else:
a <<= 1
b >>= 1
return p
GFop = lambda lo, c1, c2, c3, c4: \
GFmul(lo[0], c1) ^ GFmul(lo[1], c2) ^ GFmul(lo[2], c3) ^ GFmul(lo[3], c4)
for i in range(2, 0xB+1): # Repeat for 10 rounds.
beta_key = [sbox[b] for b in beta_key]
if verbose: print(f'[+] Beta key after SBOX: {to_str(beta_key)}')
lo, hi = beta_key[:4], beta_key[4:]
lo_nxt = [
GFop(lo, 0b001, 0b011, 0b100, 0b101) ^ GFop(hi, 0b0110, 0b1000, 0b1011, 0b0111),
GFop(lo, 0b011, 0b001, 0b101, 0b100) ^ GFop(hi, 0b1000, 0b0110, 0b0111, 0b1011),
GFop(lo, 0b100, 0b101, 0b001, 0b011) ^ GFop(hi, 0b1011, 0b0111, 0b0110, 0b1000),
GFop(lo, 0b101, 0b100, 0b011, 0b001) ^ GFop(hi, 0b0111, 0b1011, 0b1000, 0b0110),
]
hi_nxt = [
GFop(lo, 6, 8, 11, 7) ^ GFop(hi, 1, 3, 4, 5),
GFop(lo, 0b1000, 0b0110, 0b0111, 0b1011) ^ GFop(hi, 0b011, 0b001, 0b101, 0b100),
GFop(lo, 0b1011, 0b0111, 0b0110, 0b1000) ^ GFop(hi, 0b100, 0b101, 0b001, 0b011),
GFop(lo, 0b0111, 0b1011, 0b1000, 0b0110) ^ GFop(hi, 0b101, 0b100, 0b011, 0b001),
]
'''
# ~~~~~ OLDER (NOT SIMPLIFIED) VERSION OF THE CODE ~~~~~
# Galois Fields helper routines (K rounds of multiplication).
galois_1_round = lambda lo: \
[((a << 1) ^ 0x1D if a & 0x80 else a << 1) & 0xFF for a in lo]
galois_2_rounds = lambda lo: \
galois_1_round(galois_1_round(lo))
galois_3_rounds = lambda lo: \
galois_1_round(galois_1_round(galois_1_round(lo)))
A = galois_1_round(lo) # lo*2
B = galois_1_round(hi) # hi*2
C = galois_2_rounds(lo) # lo*4, or C = galois_1_round(A)
D = galois_2_rounds(hi) # hi*4, or D = galois_1_round(B)
E = galois_3_rounds(lo) # lo*8, or E = galois_1_round(C)
F = galois_3_rounds(hi) # hi*8, or F = galois_1_round(D)
lo_nxt = [
lo[0]^lo[1]^lo[3] ^ A[1] ^ B[0]^B[2]^B[3] ^ C[2]^C[3] ^ D[0]^D[3] ^ F[1]^F[2] ^ hi[2]^hi[3],
lo[0]^lo[1]^lo[2] ^ A[0] ^ B[1]^B[2]^B[3] ^ C[2]^C[3] ^ D[1]^D[2] ^ F[0]^F[3] ^ hi[2]^hi[3],
lo[1]^lo[2]^lo[3] ^ A[3] ^ B[0]^B[1]^B[2] ^ C[0]^C[1] ^ D[1]^D[2] ^ F[0]^F[3] ^ hi[0]^hi[1],
lo[0]^lo[2]^lo[3] ^ A[2] ^ B[0]^B[1]^B[3] ^ C[0]^C[1] ^ D[0]^D[3] ^ F[1]^F[2] ^ hi[0]^hi[1],
]
# Exactly the same as lo_nxt with substitutions:
# lo ~> hi, hi ~> lo, A ~> B, B ~> A, C ~> D, D ~> C, E ~> F, F ~> E
hi_nxt = [
lo[2]^lo[3] ^ A[0]^A[2]^A[3] ^ B[1] ^ C[0]^C[3] ^ D[2]^D[3] ^ E[1]^E[2] ^ hi[0]^hi[1]^hi[3],
lo[2]^lo[3] ^ A[1]^A[2]^A[3] ^ B[0] ^ C[1]^C[2] ^ D[2]^D[3] ^ E[0]^E[3] ^ hi[0]^hi[1]^hi[2],
lo[0]^lo[1] ^ A[0]^A[1]^A[2] ^ B[3] ^ C[1]^C[2] ^ D[0]^D[1] ^ E[0]^E[3] ^ hi[1]^hi[2]^hi[3],
lo[0]^lo[1] ^ A[0]^A[1]^A[3] ^ B[2] ^ C[0]^C[3] ^ D[0]^D[1] ^ E[1]^E[2] ^ hi[0]^hi[2]^hi[3],
]
'''
if verbose: print(f'[+] Round {i:2d}: Beta Key: '
f'LO={to_str(lo)}, HI={to_str(hi)} ~> '
f'LO={to_str(lo_nxt)}, HI={to_str(hi_nxt)}')
# Combine low and high keys to derive the new beta key.
beta_key = lo_nxt + hi_nxt
beta_key = [b ^ r ^ 0x11*i for b, r in zip(beta_key, rnd_map[8:])]
if verbose: print(f'[+] Beta key after XOR : {to_str(beta_key)}')
rnd_map = rnd_map[8:] # Move on the next 8 bytes of random map.
if verbose: print(f'[+] Final ciphertext: {to_str(beta_key)}')
return beta_key
# ----------------------------------------------------------------------------------------
if __name__ == "__main__":
print('[+] hxp3drm crack started.')
# ----------------------------------------------------------------
# Testing encryption (not needed for cracking).
# ----------------------------------------------------------------
# i) Encrypt a random beta key:
beta_key = '1ZY00000010Z'
cipher1 = galois_encryption(beta_key_to_int(beta_key), 'Beta Key', True)
print(f'[+] Galois_Fields_Encryption({beta_key}) = {to_str(cipher1)}')
# ii) Encrypt the correct beta key:
beta_key = 'PL5L3TM31NKK'
cipher2 = galois_encryption(beta_key_to_int(beta_key), 'Beta Key')
print(f'[+] Galois_Fields_Encryption({beta_key}) = {to_str(cipher2)}')
# iii) Encrypt coordinates of the first brick that gets hit:
cipher3 = galois_encryption(0x0707, 'Play well, get flag.'[11:])
print(f'[+] Galois_Fields_Encryption(0x0707) = {to_str(cipher3)}')
# ----------------------------------------------------------------
# Cracking starts from here.
# ----------------------------------------------------------------
beta_key_int = beta_key_to_int('PL5L3TM31NKK')
beta_key_val = qword_to_list(beta_key_int)
print(f'[+] Beta Key Int: 0x{beta_key_int:016X}')
print(f'[+] Beta Key Val: {to_str(beta_key_val)}')
# Compute score cipher from the coordinates of all bricks.
score_cipher = [0]*8
c = 1
for y, row in enumerate(brick_map[::-1]):
for x, cell in enumerate(row):
if cell != '#': continue
coords = (x << 8) | (y + 1)
brick_cipher = galois_encryption(coords, 'Play well, get flag.'[11:])
print(f'[+] {c:2d}: Galois_Fields_Encryption(0x{coords:04x}) ~> '
f'{to_str(brick_cipher)} ({x:2d}, {y+1:2d})')
# XOR all brick coordinates together.
score_cipher = [s ^ b for s, b in zip(score_cipher, brick_cipher)]
c += 1
print(f'[+] Final score cipher from all bricks: {to_str(score_cipher)}')
# Do MD5 and compute final decryption key.
code_segm = list(open('code.segm', 'rb').read())
md5 = hashlib.md5(bytes(code_segm))
print(f'[+] MD5 of CODE segment: {md5.hexdigest()}')
digest = [d for d in md5.digest()]
aes_key = [0]*16
for i in range(8):
aes_key[i] = digest[i] ^ beta_key_val[i]
aes_key[i+8] = digest[i+8] ^ score_cipher[i]
print(f'[+] Final AES key: {to_str(aes_key)}')
# Decrypt ciphertext with ASCII art flag.
print('[+] ASCII art flag:')
crypto = AES.new(key=bytes(aes_key), IV=('\0'*16).encode('utf-8'), mode=AES.MODE_CBC)
plain = crypto.decrypt(bytes(flag_ASCII_ciphertext))
# Plaintext is 2560 ~ 2556 = 142 (flag parts) * 18 (rows) bytes.
for i in range(0, len(plain), 142):
print(f'[+] {plain[i:i+142]}')
print('[+] Program finished. Bye bye :)')
# ----------------------------------------------------------------------------------------
